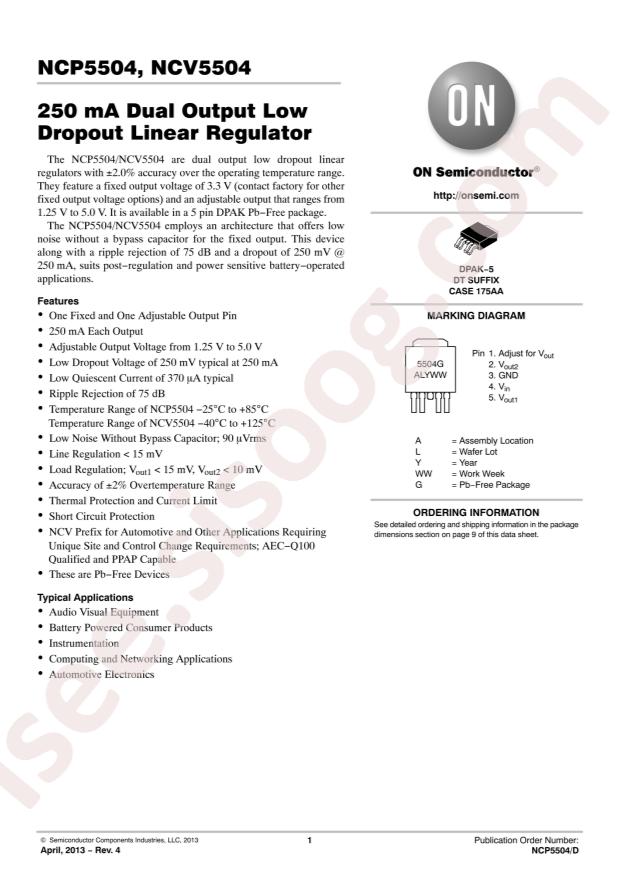

NCP5504DTRKG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCP5504DTRKG
|
|
حجم فایل
|
72.697
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Feature:
Overcurrent Protection;Thermal Protection
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCP5504DTRKG
-
Output Type:
-
-
Output Current:
250mA
-
Output Voltage:
1.25V~5V
-
Dropout Voltage:
0.4V@(250mA)
-
Output Polarity:
positive
-
Number of Outputs:
2
-
Maximum Input Voltage:
18V
-
Operating Temperature:
-25°C~+85°C
-
Quiescent Current (Ground Current):
450uA
-
Power Supply Rejection Ratio (PSRR):
75dB@(120Hz)
-
Package:
TO-252-5
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
2
-
Voltage - Input (Max):
18V
-
Voltage - Output (Min/Fixed):
1.25V (3.3V)
-
Voltage - Output (Max):
5V
-
Voltage Dropout (Max):
0.4V @ 250mA, 0.4V @ 250mA
-
Current - Output:
250mA, 250mA
-
Current - Quiescent (Iq):
450µA
-
Current - Supply (Max):
20mA
-
PSRR:
75dB ~ 60dB (120Hz ~ 1kHz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature, Short Circuit
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-5, DPak (4 Leads + Tab), TO-252AD
-
Supplier Device Package:
DPAK-5
-
Base Part Number:
NCP5504
-
detail:
Linear Voltage Regulator IC 2 Output 250mA, 250mA DPAK-5
