NCV59800BMNADJTBG دیتاشیت

NCV59800BMNADJTBG

مشخصات دیتاشیت

نام دیتاشیت NCV59800BMNADJTBG
حجم فایل 77.331 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

مشاهده دیتاشیت NCV59800BMNADJTBG

دانلود دیتاشیت

سایر مستندات

NCV59800 6 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi NCV59800BMNADJTBG

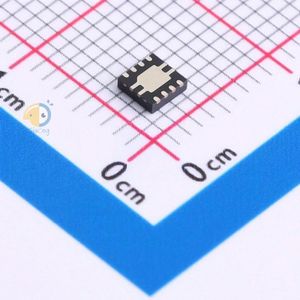

  • Package: DFN-8-EP(3x3)
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q100
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Adjustable
  • Number of Regulators: 1
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 0.8V
  • Voltage - Output (Max): 5V
  • Voltage Dropout (Max): 0.5V @ 1A
  • Current - Output: 1A
  • Current - Quiescent (Iq): 100µA
  • Current - Supply (Max): 500µA
  • PSRR: 77dB ~ 27dB (100Hz ~ 1MHz)
  • Control Features: Enable
  • Protection Features: Current Limit, Thermal Shutdown
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 8-VDFN Exposed Pad
  • Supplier Device Package: 8-DFN (3x3)
  • Base Part Number: NCV59800
  • detail: Linear Voltage Regulator IC 1 Output 1A 8-DFN (3x3)
