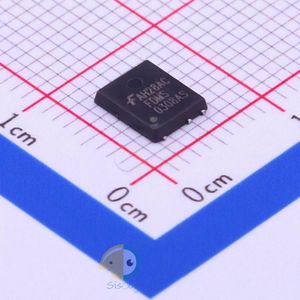

FDMS0308AS دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت FDMS0308AS	دانلود دیتاشیت

RoHS: true
Type: N Channel
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: onsemi FDMS0308AS
Operating Temperature: -55°C~+150°C@(Tj)
Power Dissipation (Pd): 2.5W;50W
Total Gate Charge (Qg@Vgs): 47nC@10V
Drain Source Voltage (Vdss): 30V
Input Capacitance (Ciss@Vds): 3000pF@15V
Continuous Drain Current (Id): 24A;49A
Gate Threshold Voltage (Vgs(th)@Id): 3V@1mA
Drain Source On Resistance (RDS(on)@Vgs,Id): 2.8mΩ@10V,24A
Package: PQFN-8(5x6)
Manufacturer: onsemi
Series: PowerTrench®, SyncFET™
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 49A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Rds On (Max) @ Id, Vgs: 2.8mOhm @ 24A, 10V
Vgs(th) (Max) @ Id: 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs: 47nC @ 10V
Vgs (Max): ±20V
Input Capacitance (Ciss) (Max) @ Vds: 3000pF @ 15V
FET Feature: -
Power Dissipation (Max): 2.5W (Ta), 50W (Tc)
Mounting Type: Surface Mount
Supplier Device Package: 8-PQFN (5x6)
Package / Case: 8-PowerTDFN
Base Part Number: FDMS03
detail: N-Channel 30V 24A (Ta), 49A (Tc) 2.5W (Ta), 50W (Tc) Surface Mount 8-PQFN (5x6)
