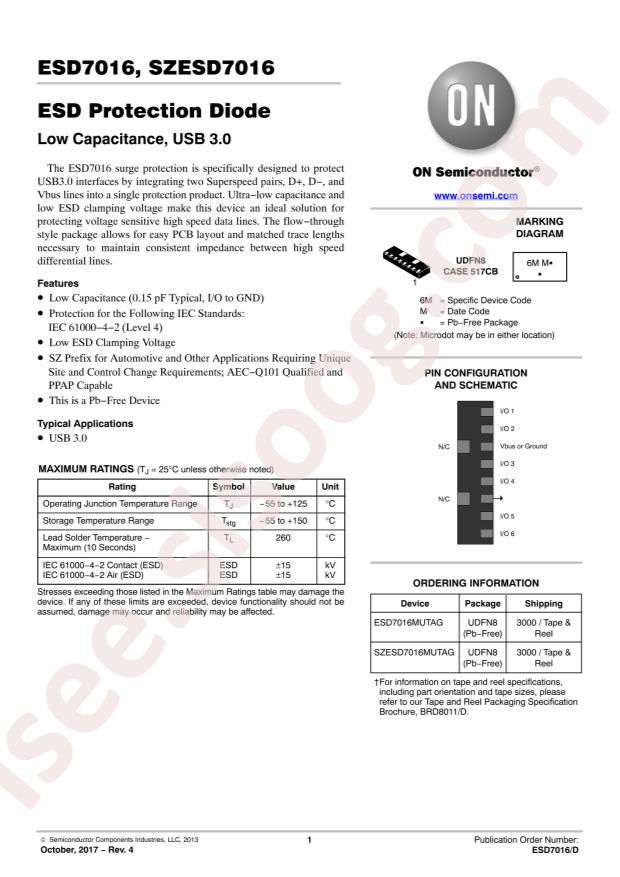

- دیتاشیت SZESD7016MUTAG
SZESD7016MUTAG دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SZESD7016MUTAG |
|---|---|
| حجم فایل | 79.735 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت SZESD7016MUTAG |
دانلود دیتاشیت |
|---|
سایر مستندات
ESD7016, SZESD701 8 pages
مشخصات فنی
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
- Datasheet: onsemi SZESD7016MUTAG
- Number of Lines: 8
- Clamping Voltage@Ipp: 10V
- Operating Temperature: -55°C~+125°C@(Tj)
- Breakdown Voltage (VBR): 5.5V
- Peak Pulse Power(Ppp)@8/20us: -
- Junction Capacitance(Cj)@1MHz: 0.15pF@1MHz
- Reverse Stand-Off Voltage (Vrwm): 5V
- Package: UDFN-8
- Manufacturer: onsemi
- Series: Automotive, AEC-Q101
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Zener
- Unidirectional Channels: 8
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 5.5V
- Voltage - Clamping (Max) @ Ipp: 10V
- Current - Peak Pulse (10/1000µs): 1A (8/20µs)
- Power - Peak Pulse: -
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: 0.15pF @ 1MHz
- Mounting Type: Surface Mount
- Package / Case: 8-UFDFN
- Supplier Device Package: 8-UDFN (3.3x1.0)
- Base Part Number: SZESD7
- detail: 10V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 8-UDFN (3.3x1.0)
