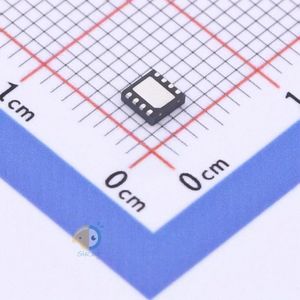

NCV8165ML330TCG دیتاشیت
مشخصات دیتاشیت
|

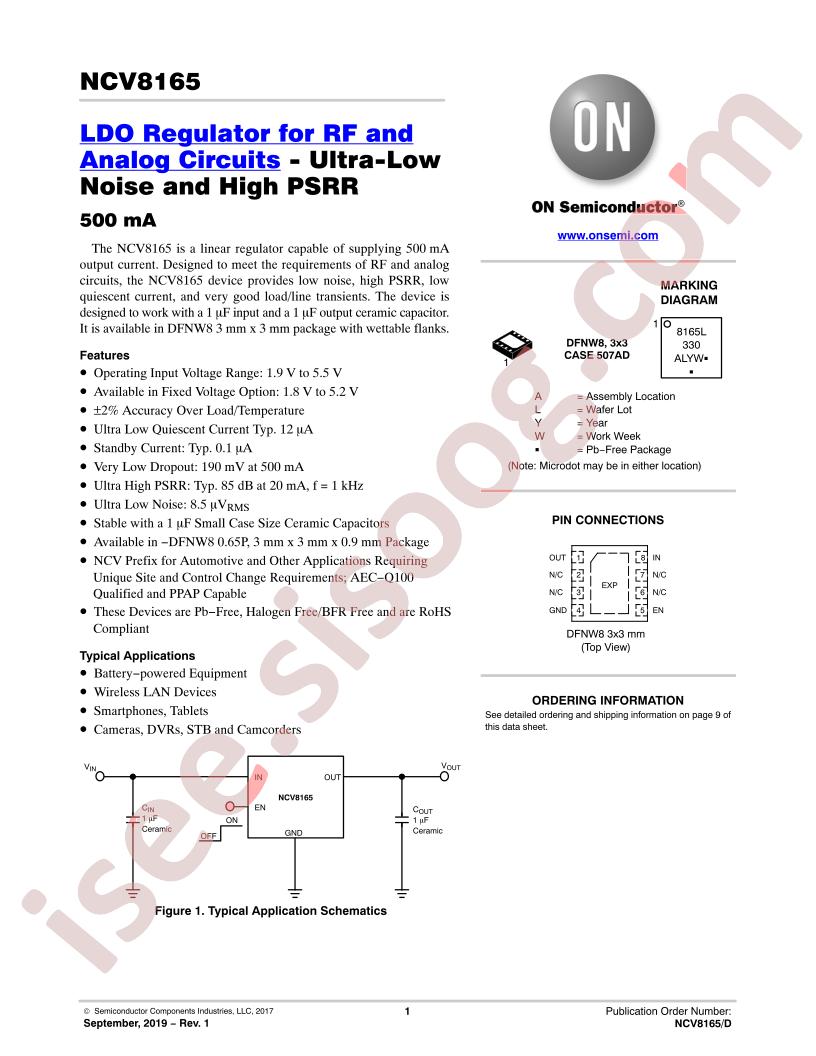

نام دیتاشیت
|
NCV8165
|
|
حجم فایل
|
331
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
Automotive, AEC-Q100
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.29V @ 500mA
-
Current - Output:
500mA
-
Current - Quiescent (Iq):
18µA
-
PSRR:
83dB ~ 63dB (100Hz ~ 100kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Operating Temperature:
-40°C ~ 125°C (TJ)
-
Mounting Type:
Surface Mount, Wettable Flank
-
Package / Case:
8-VDFN Exposed Pad
-
Supplier Device Package:
8-DFNW (3x3)
-
Base Part Number:
NCV8165
-
detail:
Linear Voltage Regulator IC 1 Output 500mA 8-DFNW (3x3)
