FSV10120V دیتاشیت

FSV10120V

مشخصات دیتاشیت

نام دیتاشیت FSV10120V
حجم فایل 64.748 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

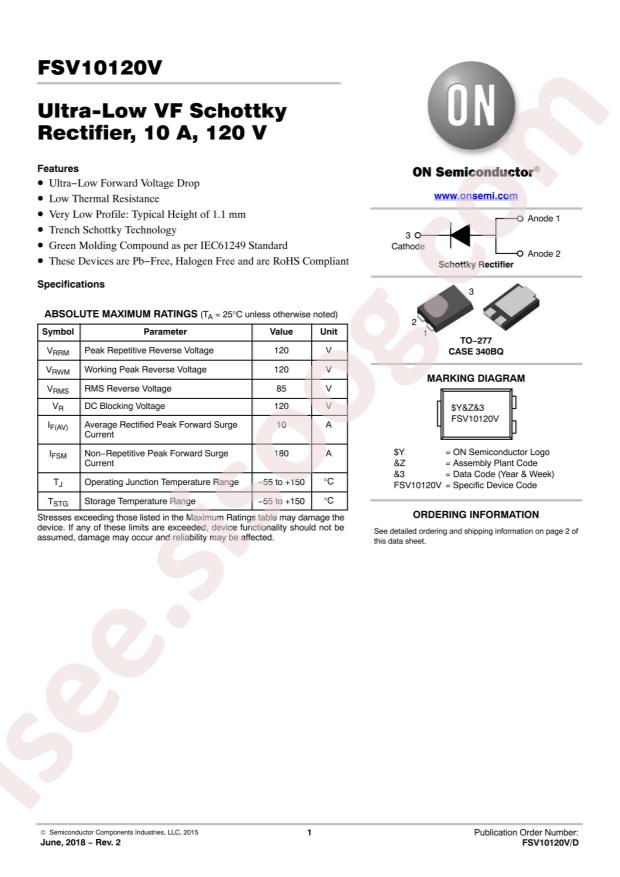

مشاهده دیتاشیت FSV10120V

دانلود دیتاشیت

سایر مستندات

FSV10120V 5 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: onsemi FSV10120V
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 120V
  • Forward Voltage (Vf@If): 748mV@10A
  • Reverse Leakage Current (Ir): 4uA@120V
  • Average Rectified Current (Io): 10A
  • Package: TO-277-3L
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 120V
  • Current - Average Rectified (Io): 10A
  • Voltage - Forward (Vf) (Max) @ If: 800mV @ 10A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 16.7ns
  • Current - Reverse Leakage @ Vr: 25µA @ 120V
  • Capacitance @ Vr, F: 608pF @ 4V, 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: TO-277, 3-PowerDFN
  • Supplier Device Package: TO-277-3
  • Operating Temperature - Junction: -55°C ~ 150°C
  • Base Part Number: FSV101
  • detail: Diode Schottky 120V 10A Surface Mount TO-277-3
