NTMFS5H610NLT1G دیتاشیت
مشخصات دیتاشیت
|

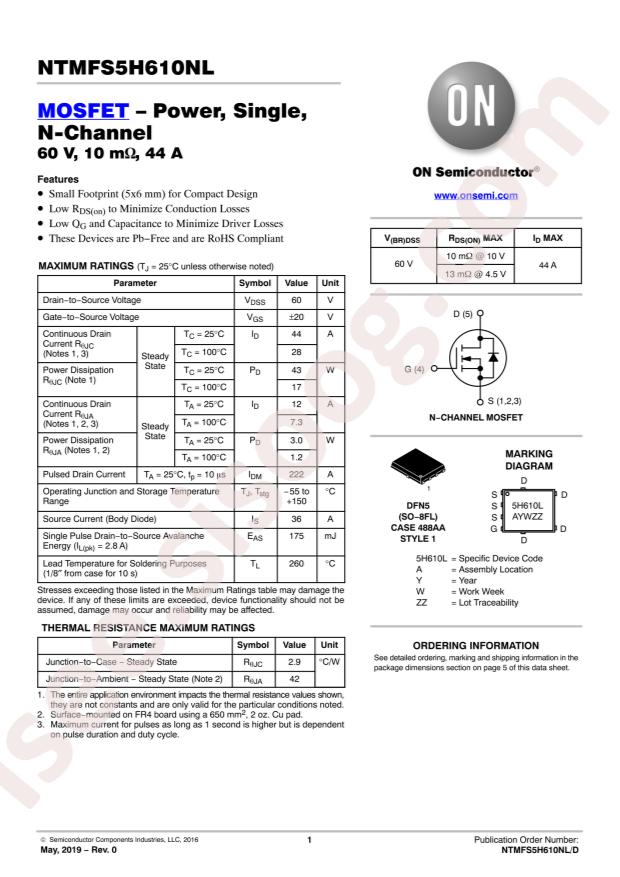

نام دیتاشیت
|
NTMFS5H610NLT1G
|
|
حجم فایل
|
88.816
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTMFS5H610NLT1G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
3W;43W
-
Total Gate Charge (Qg@Vgs):
13.7nC@10V
-
Input Capacitance (Ciss@Vds):
880pF@30V
-
Continuous Drain Current (Id):
-
-
Gate Threshold Voltage (Vgs(th)@Id):
2V@40uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
10mΩ@8A,10V
-
Package:
SO-8FL
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
12A (Ta) 44A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
10mOhm @ 8A, 10V
-
Vgs(th) (Max) @ Id:
2V @ 40µA
-
Gate Charge (Qg) (Max) @ Vgs:
13.7nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
880pF @ 30V
-
FET Feature:
-
-
Power Dissipation (Max):
3W (Ta), 43W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
5-DFN (5x6) (8-SOFL)
-
Package / Case:
8-PowerTDFN, 5 Leads
-
Base Part Number:
NTMFS5
-
detail:
N-Channel 60V 12A (Ta) 44A (Tc) 3W (Ta), 43W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
