دیتاشیت LB11961-TLM-H

LB11961

مشخصات دیتاشیت

نام دیتاشیت LB11961
حجم فایل 239.936 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت LB11961

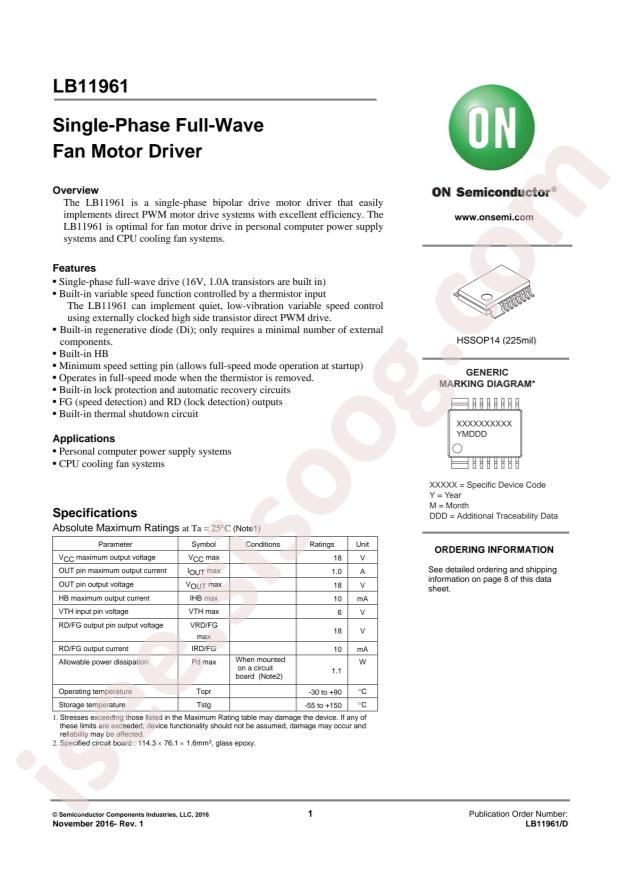

LB11961 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (2)
  • Interface: Parallel
  • Technology: Bipolar
  • Step Resolution: -
  • Applications: Fan Motor Driver
  • Current - Output: 1A
  • Voltage - Supply: 4.5V ~ 16V
  • Voltage - Load: 4.5V ~ 16V
  • Operating Temperature: -30°C ~ 90°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs
  • Supplier Device Package: 14-HSSOP
  • Base Part Number: LB1196
  • detail: Motor Driver Bipolar Parallel 14-HSSOP
