LM2931AD2T-5R4G Datasheet

LM2931AD2T-5R4G

Datasheet specifications

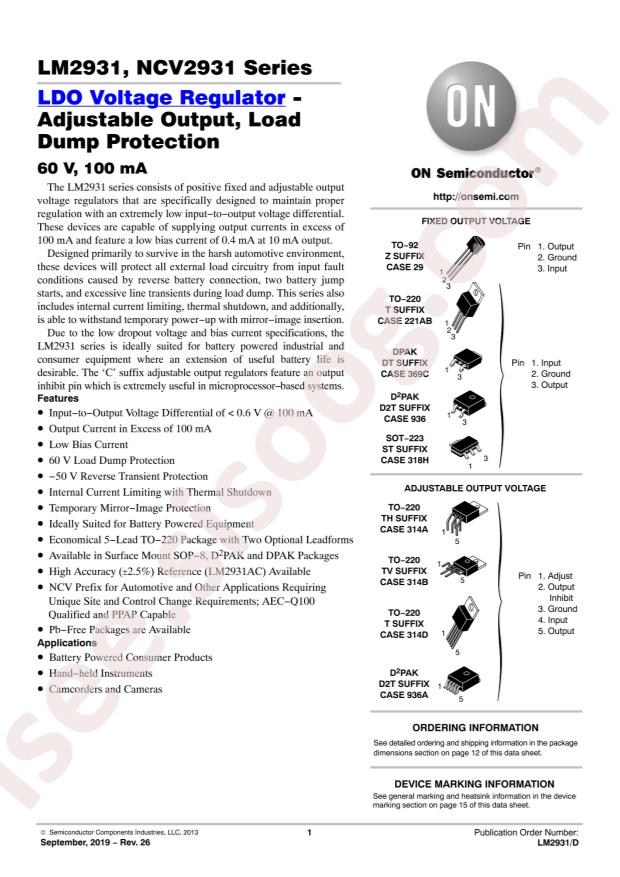

Datasheet's name LM2931AD2T-5R4G
File size 96.912 KB
File type pdf
Number of pages 23

Download Datasheet LM2931AD2T-5R4G

Download Datasheet

Other documentations

LM2931, NCV2931 Series 23 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi LM2931AD2T-5R4G
  • Output Type: Fixed
  • Output Current: 100mA
  • Output Voltage: 5V
  • Dropout Voltage: 600mV@(100mA)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 40V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 1mA
  • Power Supply Rejection Ratio (PSRR): 90dB@(120Hz)
  • Package: D2PAK
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 40V
  • Voltage - Output (Min/Fixed): 5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.6V @ 100mA
  • Current - Output: 100mA
  • PSRR: 90dB (120Hz)
  • Control Features: -
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Supplier Device Package: DPAK
  • Base Part Number: LM2931
  • detail: Linear Voltage Regulator IC 1 Output 100mA DPAK
