LP2950CZ-5.0RPG Datasheet

LP2950, LP2951, NCV2951

Datasheet specifications

Datasheet's name LP2950, LP2951, NCV2951
File size 261.673 KB
File type pdf
Number of pages 22

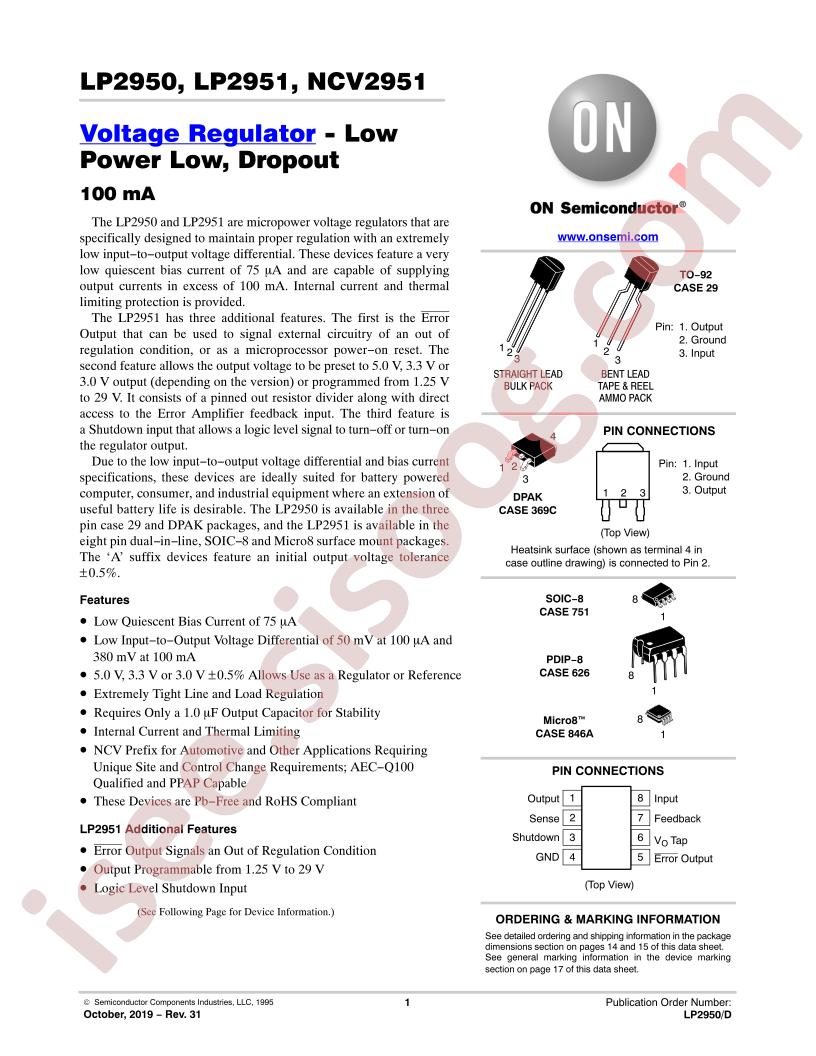

Download Datasheet LP2950, LP2951, NCV2951

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tape & Box (TB)
  • Part Status: Obsolete
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 30V
  • Voltage - Output (Min/Fixed): 5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.45V @ 100mA
  • Current - Output: 100mA
  • Current - Quiescent (Iq): 120µA
  • Current - Supply (Max): 12mA
  • PSRR: -
  • Control Features: -
  • Protection Features: Over Current, Over Temperature
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Through Hole
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
  • Supplier Device Package: TO-92-3
  • Base Part Number: LP295
  • detail: Linear Voltage Regulator IC 1 Output 100mA TO-92-3
