FSA515UCX دیتاشیت

مشخصات دیتاشیت

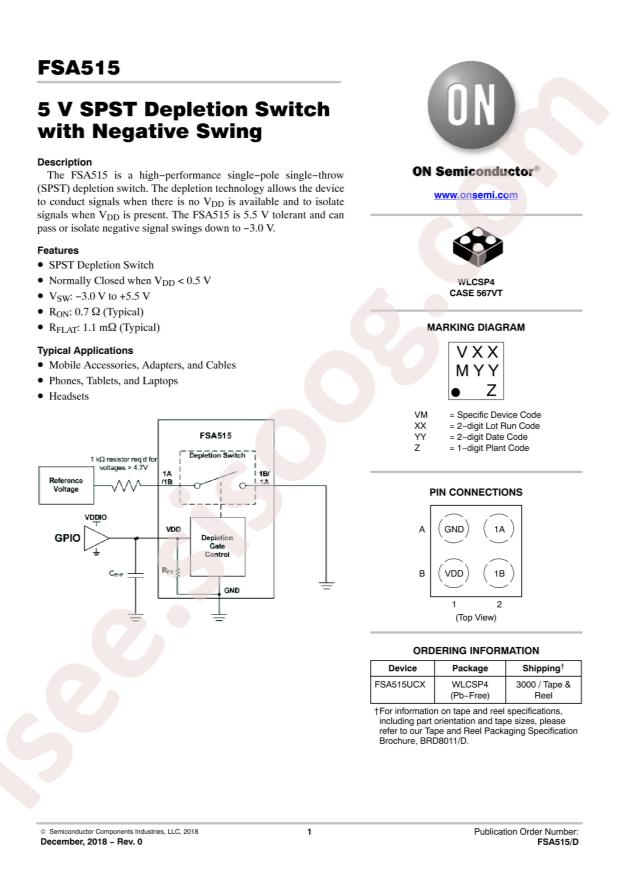

مشاهده دیتاشیت FSA515UCX	دانلود دیتاشیت

FSA515 5 pages

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: onsemi FSA515UCX
Turn-on time: 250us
Turn-off time: 85us
Supply Voltage: 2.5V~5.5V
Switch Circuit: SPST(SPST)-Normal Open
Number of Channels: 1
On-State Resistance (Max): 1.1Ω
Package: WLCSP-4
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Multiplexer/Demultiplexer Circuit: 1:1
Number of Circuits: 1
Channel-to-Channel Matching (ΔRon): 1.1mOhm
Voltage - Supply, Single (V+): 2.5V ~ 5.5V
Voltage - Supply, Dual (V±): -
Switch Time (Ton, Toff) (Max): 250µs, 85µs (Typ)
-3db Bandwidth: 367MHz
Charge Injection: -
Channel Capacitance (CS(off), CD(off)): 17pF
Current - Leakage (IS(off)) (Max): 650nA
Crosstalk: -
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 4-XFBGA, WLCSP
Supplier Device Package: 4-WLCSP (0.82x0.82)
Base Part Number: FSA51
detail: 1 Circuit IC Switch 1:1 1.1Ohm 4-WLCSP (0.82x0.82)
