FQD20N06TM دیتاشیت

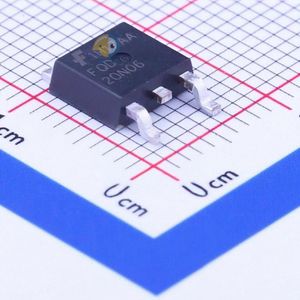

FQD20N06TM

مشخصات دیتاشیت

نام دیتاشیت FQD20N06TM
حجم فایل 75.346 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

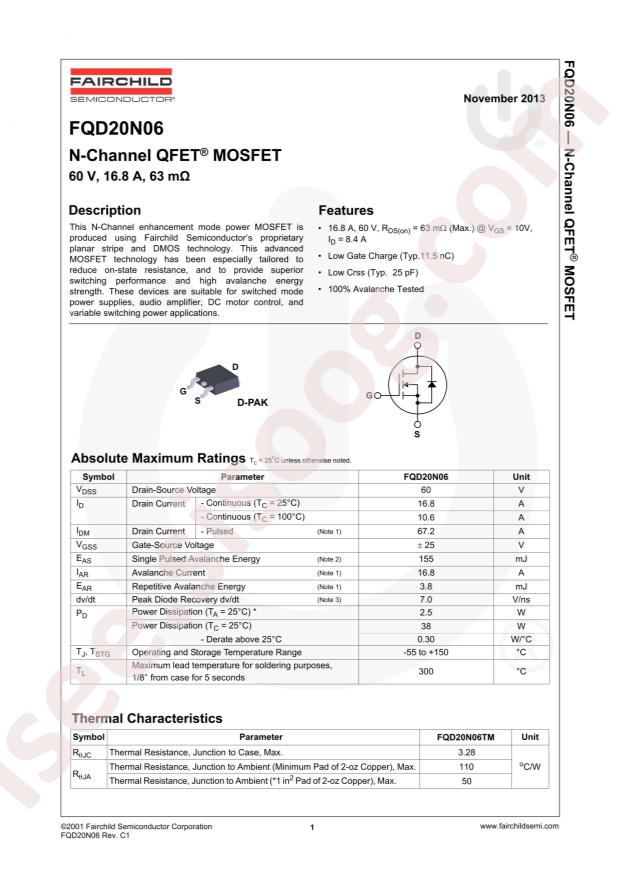

مشاهده دیتاشیت FQD20N06TM

دانلود دیتاشیت

سایر مستندات

FQD20N06 10 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FQD20N06TM
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 2.5W;38W
  • Total Gate Charge (Qg@Vgs): 15nC@10V
  • Drain Source Voltage (Vdss): 60V
  • Input Capacitance (Ciss@Vds): 590pF@25V
  • Continuous Drain Current (Id): 16.8A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 63mΩ@10V,8.4A
  • Package: TO-252
  • Manufacturer: onsemi
  • Series: QFET®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 16.8A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 63mOhm @ 8.4A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 15nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 590pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 2.5W (Ta), 38W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: D-Pak
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: FQD2
  • detail: N-Channel 60V 16.8A (Tc) 2.5W (Ta), 38W (Tc) Surface Mount D-Pak
