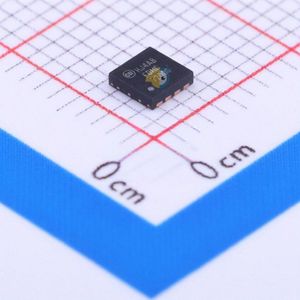

FDMC7200S دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت FDMC7200S	دانلود دیتاشیت

FDMC7200 13 pages

RoHS: true
Type: 2 N-Channel
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: onsemi FDMC7200S
Operating Temperature: -55°C~+150°C@(Tj)
Power Dissipation (Pd): 700mW;1W
Total Gate Charge (Qg@Vgs): 10nC@10V
Drain Source Voltage (Vdss): 30V
Input Capacitance (Ciss@Vds): 660pF@15V
Continuous Drain Current (Id): 7A;13A
Gate Threshold Voltage (Vgs(th)@Id): 3V@250uA
Reverse Transfer Capacitance (Crss@Vds): -
Drain Source On Resistance (RDS(on)@Vgs,Id): 22mΩ@6A,10V
Package: Power-33-8
Manufacturer: onsemi
Series: PowerTrench®
Packaging: Cut Tape (CT)
Part Status: Discontinued at Digi-Key
FET Type: 2 N-Channel (Dual)
FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 6A, 8A
Rds On (Max) @ Id, Vgs: 23.5mOhm @ 6A, 10V
Vgs(th) (Max) @ Id: 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 660pF @ 15V
Power - Max: 700mW, 900mW
Mounting Type: Surface Mount
Package / Case: 8-PowerWDFN
Supplier Device Package: 8-Power33 (3x3)
Base Part Number: FDMC72
detail: Mosfet Array 2 N-Channel (Dual) 30V 6A, 8A 700mW, 900mW Surface Mount 8-Power33 (3x3)
