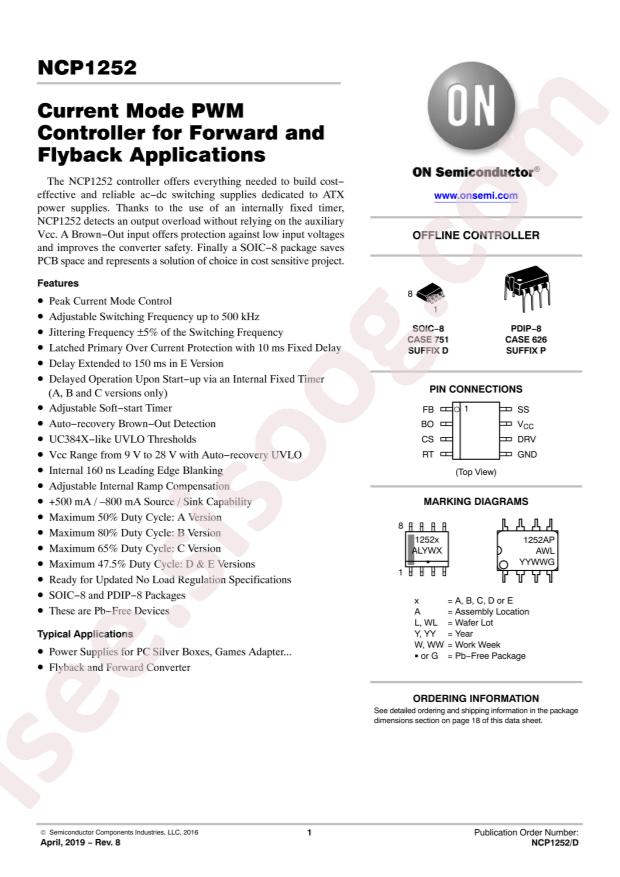

دیتاشیت NCP1252DDR2G

NCP1252DDR2G

مشخصات دیتاشیت

نام دیتاشیت NCP1252DDR2G
حجم فایل 79.683 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

NCP1252DDR2G

دانلود دیتاشیت

سایر مستندات

NCP1252 22 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Modules
  • Datasheet: onsemi NCP1252DDR2G
  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Isolation: Isolated
  • Internal Switch(s): No
  • Voltage - Breakdown: -
  • Topology: Flyback, Forward
  • Voltage - Start Up: 14V
  • Voltage - Supply (Vcc/Vdd): 9V ~ 28V
  • Duty Cycle: 45.6%
  • Frequency - Switching: Up to 500kHz
  • Fault Protection: Current Limiting
  • Control Features: Frequency Control, Soft Start
  • Operating Temperature: -25°C ~ 125°C (TJ)
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: NCP1252
  • detail: Converter Offline Flyback, Forward Topology Up to 500kHz 8-SOIC
