دیتاشیت NCP1203D40R2G

NCP1203

مشخصات دیتاشیت

نام دیتاشیت NCP1203
حجم فایل 257.794 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

دانلود دیتاشیت NCP1203

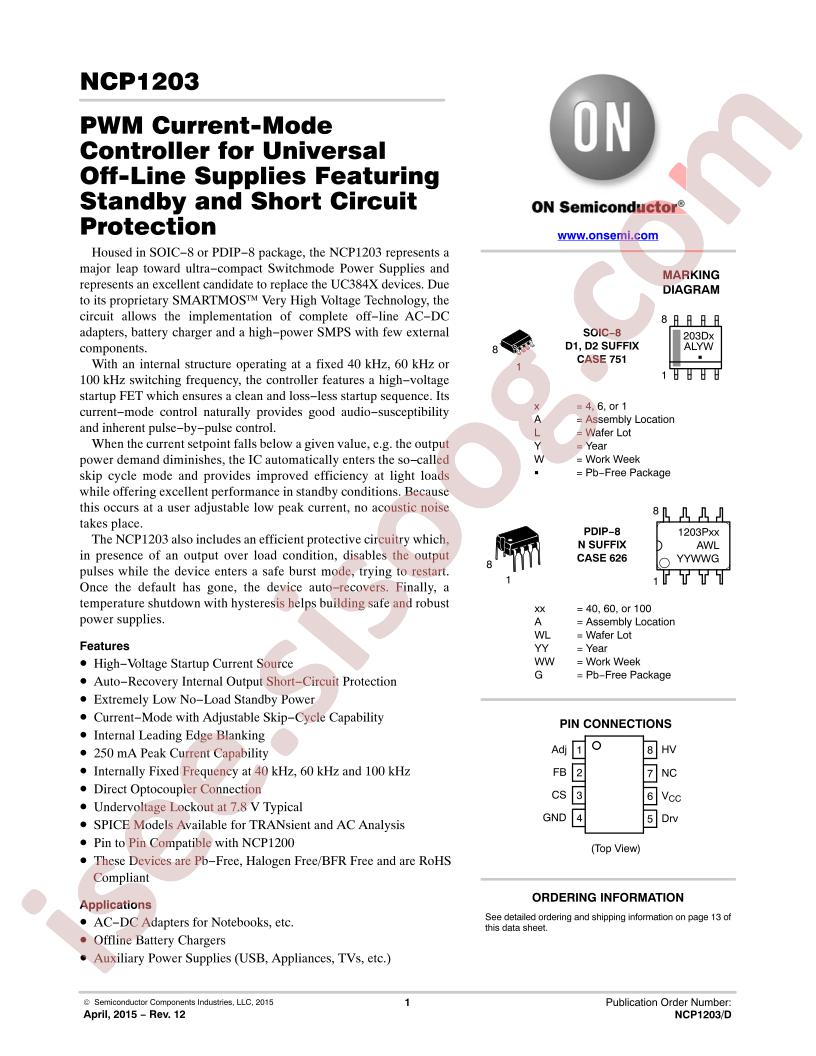

NCP1203 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: SMARTMOS™
  • Packaging: Cut Tape (CT)
  • Part Status: Not For New Designs
  • Output Isolation: Isolated
  • Internal Switch(s): No
  • Voltage - Breakdown: -
  • Topology: Flyback
  • Voltage - Start Up: 12.8V
  • Voltage - Supply (Vcc/Vdd): 7.8V ~ 16V
  • Duty Cycle: 80%
  • Frequency - Switching: 40kHz
  • Fault Protection: Over Load, Over Temperature, Short Circuit
  • Control Features: -
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: NCP1203
  • detail: Converter Offline Flyback Topology 40kHz 8-SOIC
