دیتاشیت MC33375D-5.0R2G
مشخصات دیتاشیت
| نام دیتاشیت | MC,NCV33375 Series |
|---|---|
| حجم فایل | 227.462 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 13 |

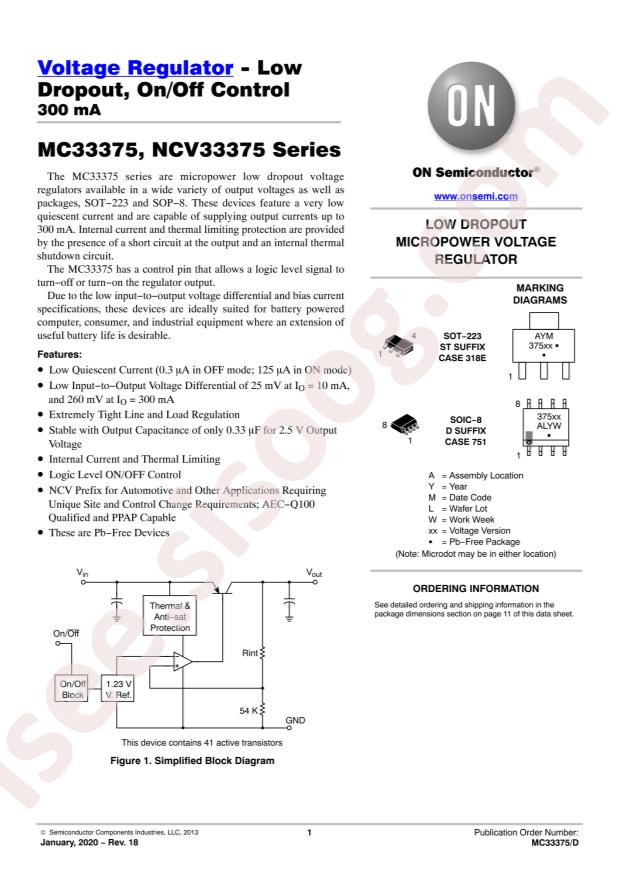

دانلود دیتاشیت MC,NCV33375 Series |
MC,NCV33375 Series Datasheet |
|---|
مشخصات
- RoHS: true
- Feature: Overcurrent Protection;Thermal Protection
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: onsemi MC33375D-5.0R2G
- Output Current: 300mA
- Output Voltage: 5V
- Dropout Voltage: 0.5V@(300mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 13V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 200uA
- Power Supply Rejection Ratio (PSRR): 75dB@(120Hz)
- Package: SOP-8
- Manufacturer: onsemi
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 13V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.5V @ 300mA
- Current - Output: 300mA
- Current - Quiescent (Iq): 200µA
- PSRR: 75dB (120Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
- Base Part Number: MC33375
- detail: Linear Voltage Regulator IC 1 Output 300mA 8-SOIC
