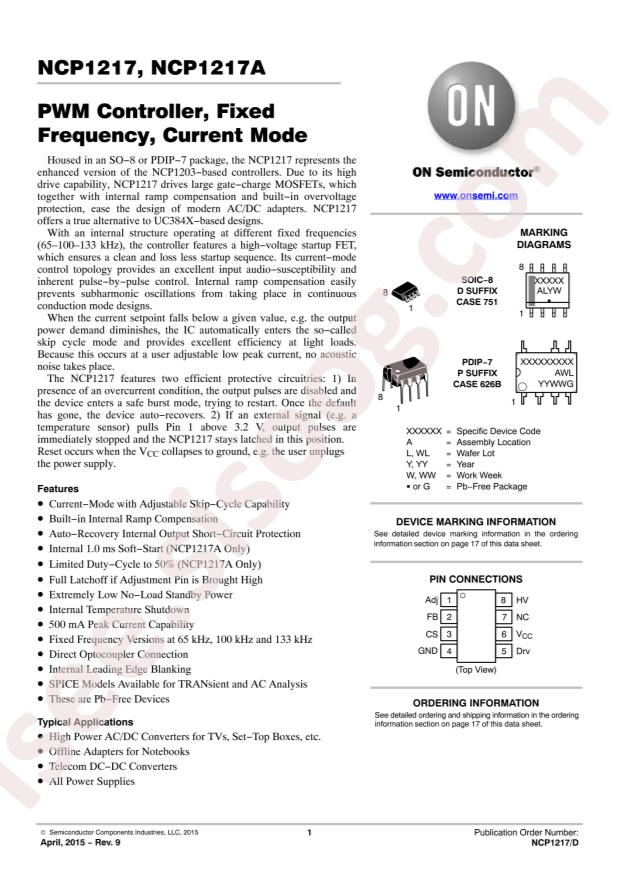

NCP1217D100R2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCP1217D100R2G
|
|
حجم فایل
|
101.917
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
21
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/AC-DC Controllers & Regulators
-
Topology:
Flyback
-
Datasheet:
onsemi NCP1217D100R2G
-
Duty Cycle:
74%
-
Supply Voltage:
7.6V~16V
-
Output Isolation:
Isolation
-
Switching Frequency:
100kHz
-
Operating Temperature:
0°C~+150°C@(Tj)
-
Package:
SOP-8
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Internal Switch(s):
No
-
Voltage - Breakdown:
-
-
Voltage - Start Up:
12.8V
-
Voltage - Supply (Vcc/Vdd):
7.6V ~ 16V
-
Frequency - Switching:
100kHz
-
Fault Protection:
Over Load, Over Temperature, Short Circuit
-
Control Features:
-
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Mounting Type:
Surface Mount
-
Base Part Number:
NCP1217
-
detail:
Converter Offline Flyback Topology 100kHz 8-SOIC
