FDMC8010DC دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت FDMC8010DC	دانلود دیتاشیت

مستندات دیگری یافت نشد!

RoHS: true
Category: Triode/MOS Tube/Transistor/MOSFETs

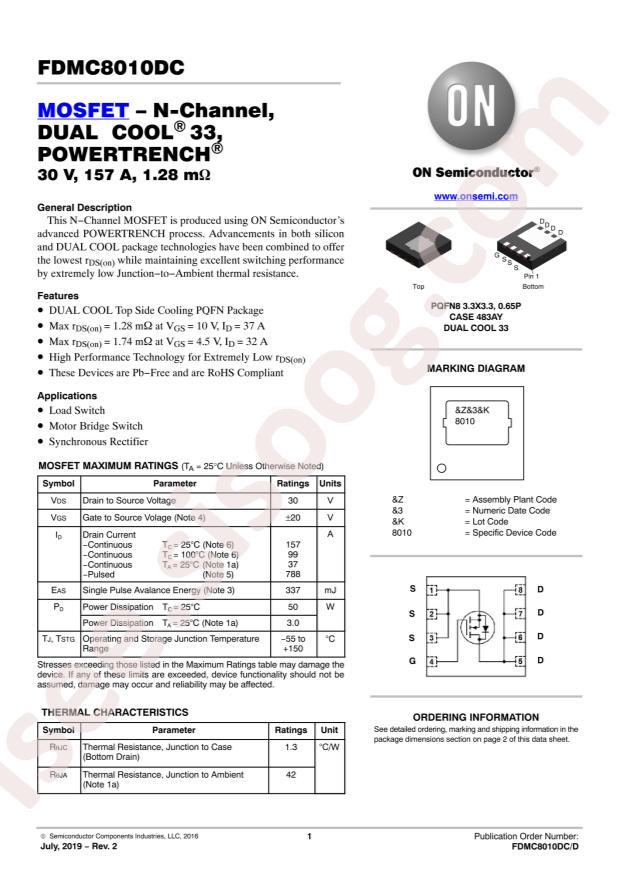

Datasheet: onsemi FDMC8010DC
Operating Temperature: -55°C~+150°C@(Tj)
Power Dissipation (Pd): 3W
Total Gate Charge (Qg@Vgs): 94nC@15V
Drain Source Voltage (Vdss): 30V
Input Capacitance (Ciss@Vds): 7080pF@15V
Continuous Drain Current (Id): 37A
Gate Threshold Voltage (Vgs(th)@Id): 3V@250uA
Reverse Transfer Capacitance (Crss@Vds): -
Drain Source On Resistance (RDS(on)@Vgs,Id): 1.28mΩ@37A,10V

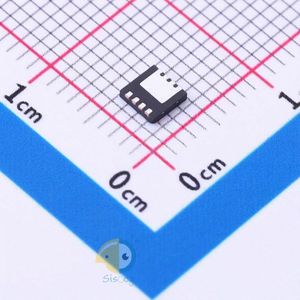

Package: PQFN-8(3.3x3.3)
Manufacturer: onsemi
Series: PowerTrench®
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 30A (Ta), 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Rds On (Max) @ Id, Vgs: 1.3mOhm @ 30A, 10V
Vgs(th) (Max) @ Id: 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs: 94nC @ 10V
Vgs (Max): ±20V
Input Capacitance (Ciss) (Max) @ Vds: 5860pF @ 15V
FET Feature: -
Power Dissipation (Max): 2.4W (Ta), 54W (Tc)
Mounting Type: Surface Mount
Supplier Device Package: Power33
Package / Case: 8-PowerWDFN
Base Part Number: FDMC80
detail: N-Channel 30V 30A (Ta), 75A (Tc) 2.4W (Ta), 54W (Tc) Surface Mount Power33
