دیتاشیت NCP1217D65R2G

NCP1217(A)

مشخصات دیتاشیت

نام دیتاشیت NCP1217(A)
حجم فایل 306.975 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت NCP1217(A)

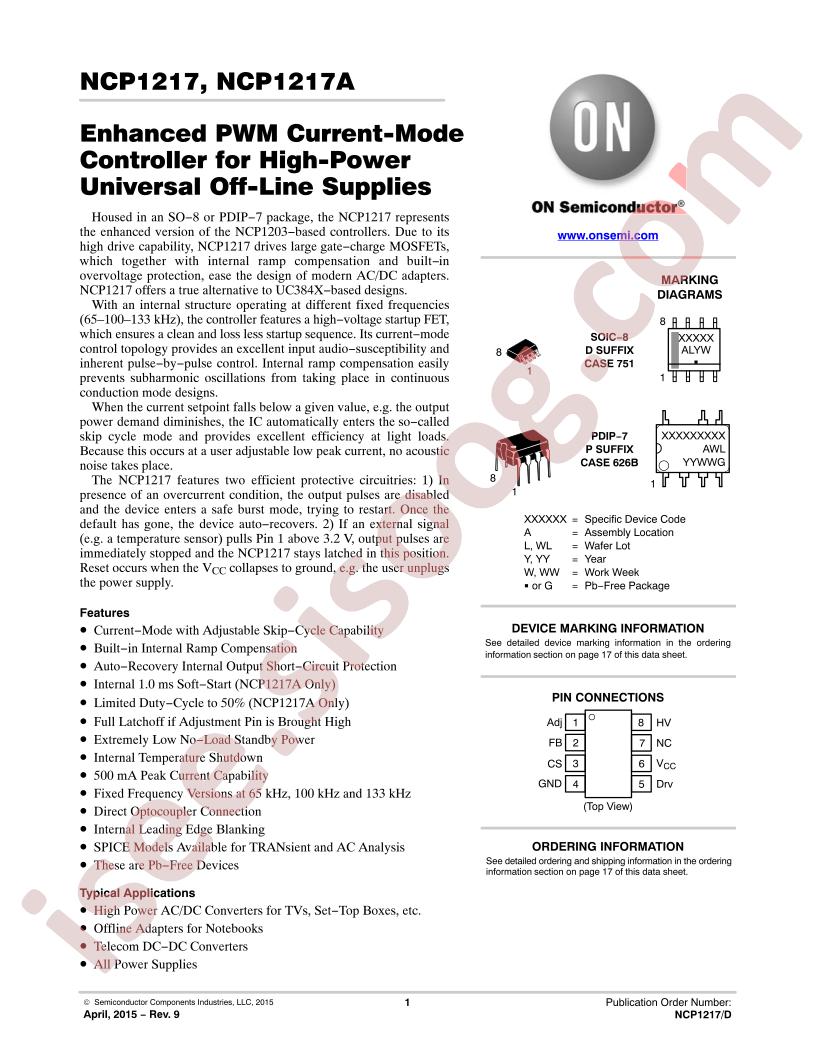

NCP1217(A) Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Output Isolation: Isolated
  • Internal Switch(s): No
  • Voltage - Breakdown: -
  • Topology: Flyback
  • Voltage - Start Up: 12.8V
  • Voltage - Supply (Vcc/Vdd): 7.6V ~ 16V
  • Duty Cycle: 74%
  • Frequency - Switching: 65kHz
  • Fault Protection: Over Load, Over Temperature, Short Circuit
  • Control Features: -
  • Operating Temperature: 0°C ~ 150°C (TJ)
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: NCP1217
  • detail: Converter Offline Flyback Topology 65kHz 8-SOIC

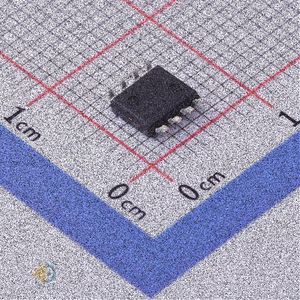

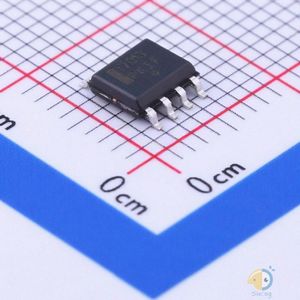

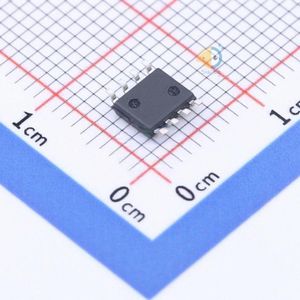

دیتاشیت محصولات مشابه
