دیتاشیت FDD8870
مشخصات دیتاشیت
| نام دیتاشیت | FDD8870, FDU8870 |
|---|---|
| حجم فایل | 479.311 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |

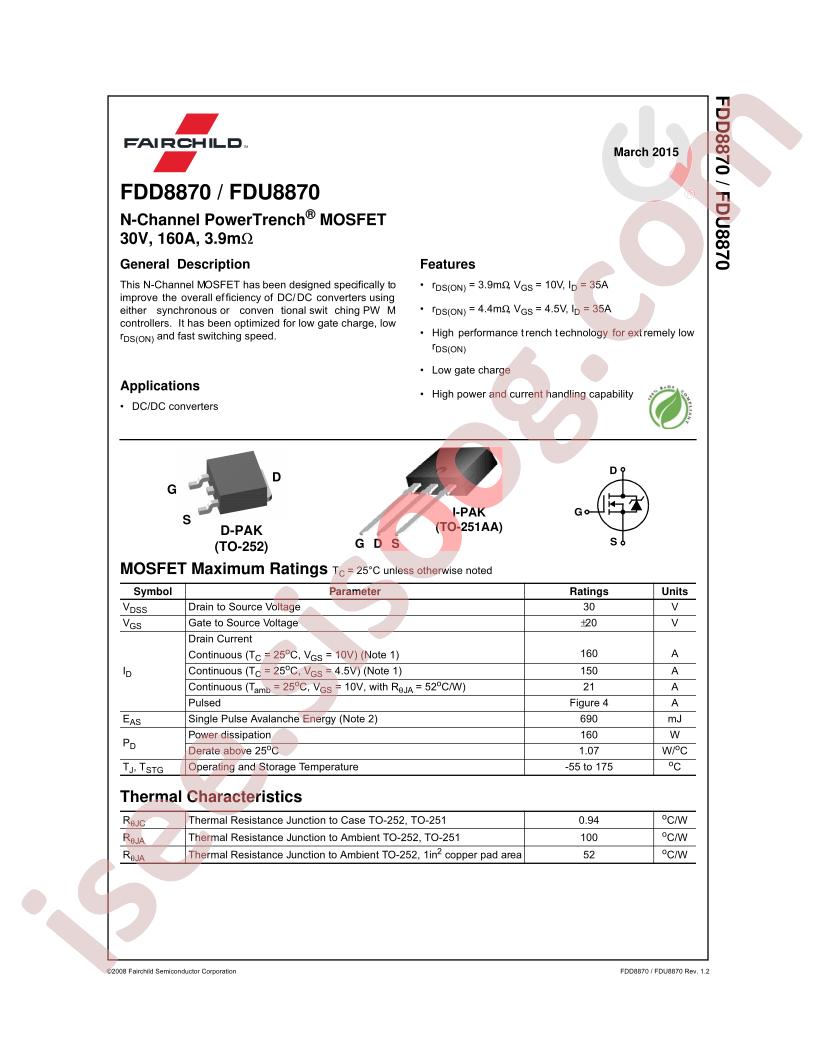

دانلود دیتاشیت FDD8870, FDU8870 |

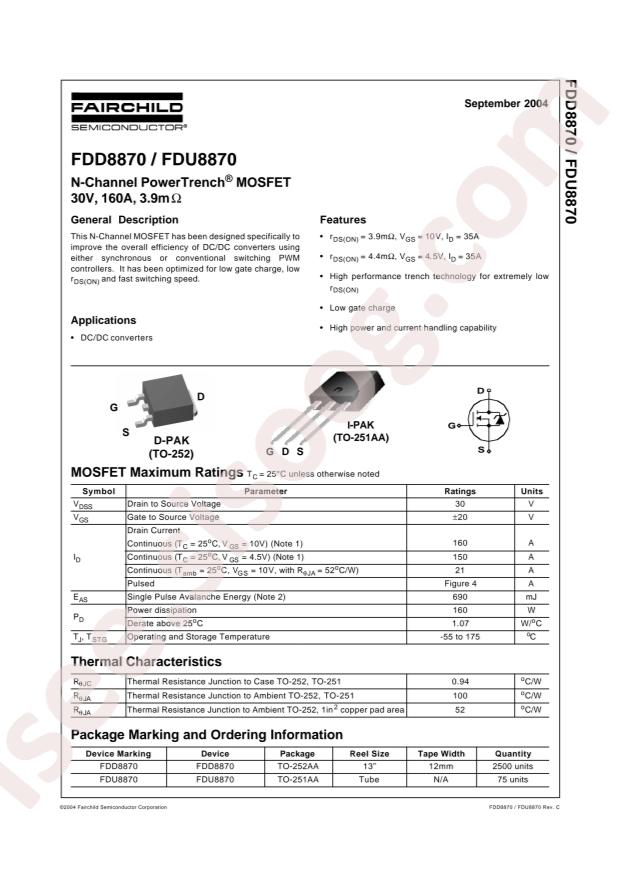

FDD8870, FDU8870 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi FDD8870
- Operating Temperature: -55°C~+175°C@(Tj)
- Power Dissipation (Pd): 160W
- Total Gate Charge (Qg@Vgs): 118nC@10V
- Drain Source Voltage (Vdss): 30V
- Input Capacitance (Ciss@Vds): 5160pF@15V
- Continuous Drain Current (Id): 21A;160A
- Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 3.9mΩ@10V,35A
- Package: TO-252
- Manufacturer: onsemi
- Series: PowerTrench®
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 21A (Ta), 160A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.9mOhm @ 35A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 118nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5160pF @ 15V
- FET Feature: -
- Power Dissipation (Max): 160W (Tc)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-252AA
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Base Part Number: FDD887
- detail: N-Channel 30V 21A (Ta), 160A (Tc) 160W (Tc) Surface Mount TO-252AA
