دیتاشیت FDMS7620S
مشخصات دیتاشیت
| نام دیتاشیت |
FDMS7620S
|
| حجم فایل |
425.946
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
11
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
2 N-Channel (Dual)
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
10.1A, 12.4A
-
Rds On (Max) @ Id, Vgs:
20mOhm @ 10.1A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
11nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
608pF @ 15V
-
Power - Max:
1W
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-

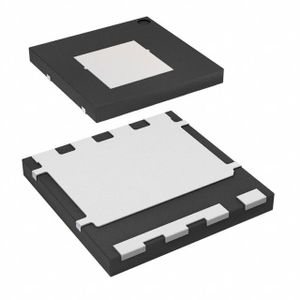

Package / Case:
8-PowerWDFN
-
Supplier Device Package:
Power56
-
Base Part Number:
FDMS76
-
detail:
Mosfet Array 2 N-Channel (Dual) 30V 10.1A, 12.4A 1W Surface Mount Power56
