ATP113-TL-H دیتاشیت

ATP113-TL-H

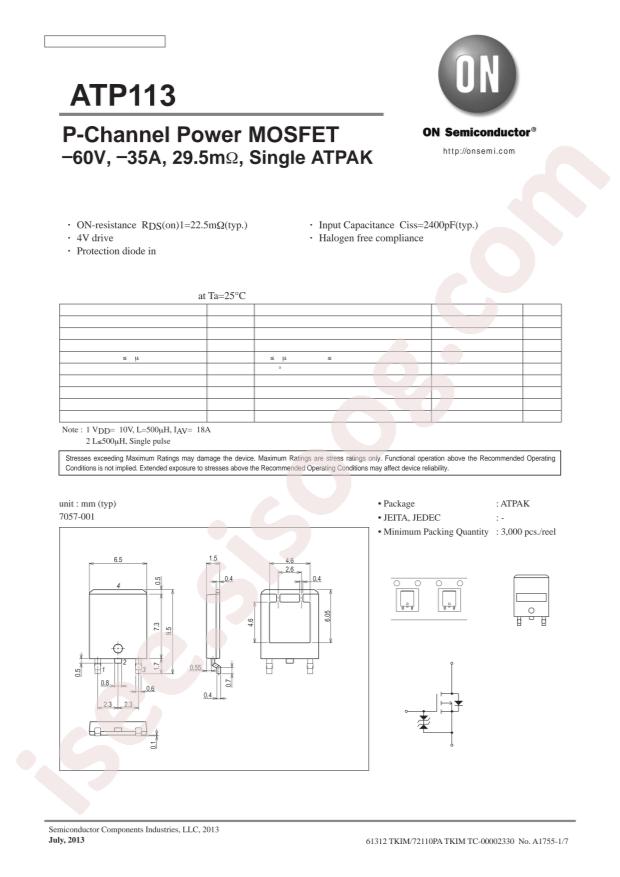

مشخصات دیتاشیت

نام دیتاشیت ATP113-TL-H
حجم فایل 55.004 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

مشاهده دیتاشیت ATP113-TL-H

دانلود دیتاشیت

سایر مستندات

ATP113 7 pages

مشخصات فنی

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi ATP113-TL-H
  • Power Dissipation (Pd): 50W
  • Total Gate Charge (Qg@Vgs): 55nC@10V
  • Input Capacitance (Ciss@Vds): 2400pF@20V
  • Continuous Drain Current (Id): 35A
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 29.5mΩ@18A,10V
  • Package: -
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 35A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4V, 10V
  • Rds On (Max) @ Id, Vgs: 29.5mOhm @ 18A, 10V
  • Vgs(th) (Max) @ Id: -
  • Gate Charge (Qg) (Max) @ Vgs: 55nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 2400pF @ 20V
  • FET Feature: -
  • Power Dissipation (Max): 50W (Tc)
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: ATPAK
  • Package / Case: ATPAK (2 leads+tab)
  • Base Part Number: ATP113
  • detail: P-Channel 60V 35A (Ta) 50W (Tc) Surface Mount ATPAK
