دیتاشیت FDMS86369-F085

FDMS86369_F085

مشخصات دیتاشیت

نام دیتاشیت FDMS86369_F085
حجم فایل 464.223 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت FDMS86369_F085

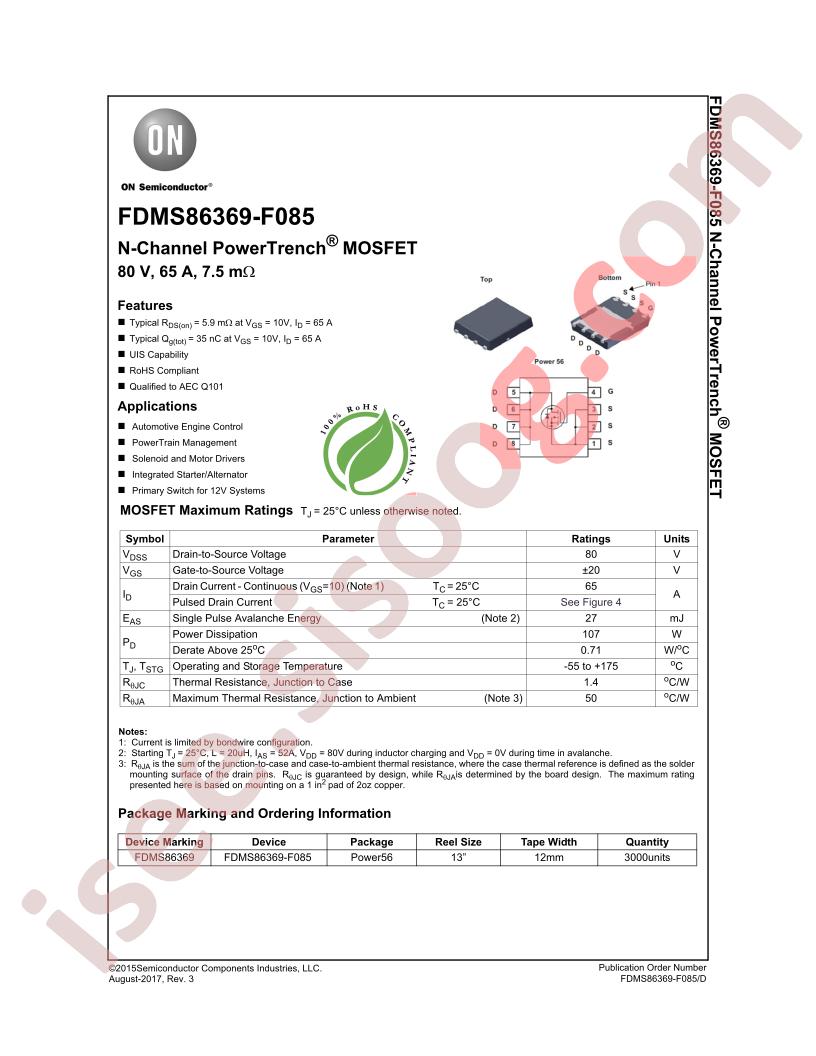

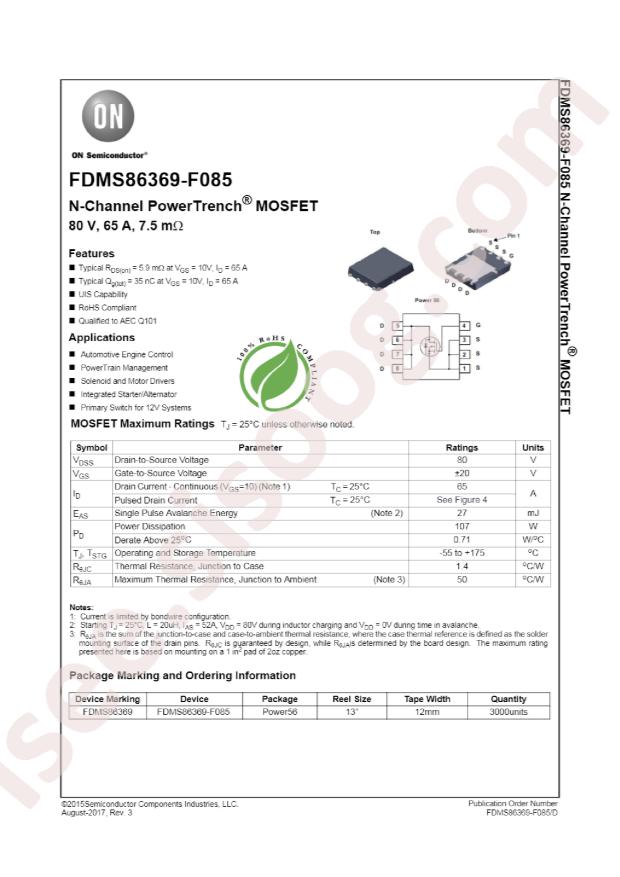

FDMS86369_F085 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: Automotive, AEC-Q101, PowerTrench®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 80V
  • Current - Continuous Drain (Id) @ 25°C: 65A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 7.5mOhm @ 65A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 46nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 2470pF @ 40V
  • FET Feature: -
  • Power Dissipation (Max): 107W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: Power56
  • Package / Case: 8-PowerTDFN
  • Base Part Number: FDMS86
  • detail: N-Channel 80V 65A (Tc) 107W (Tc) Surface Mount Power56
