FDS8870 دیتاشیت

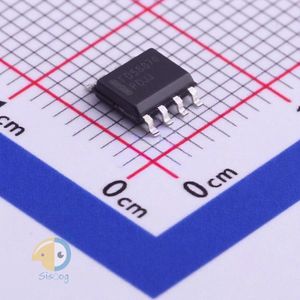

FDS8870

مشخصات دیتاشیت

نام دیتاشیت FDS8870
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

مشاهده دیتاشیت FDS8870

دانلود دیتاشیت

سایر مستندات

FDS8870 14 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDS8870
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 2.5W
  • Total Gate Charge (Qg@Vgs): 112nC@10V
  • Drain Source Voltage (Vdss): 30V
  • Input Capacitance (Ciss@Vds): 4615pF@15V
  • Continuous Drain Current (Id): 18A
  • Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 4.2mΩ@18A,10V
  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: PowerTrench®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 18A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 4.2mOhm @ 18A, 10V
  • Vgs(th) (Max) @ Id: 2.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 112nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 4615pF @ 15V
  • FET Feature: -
  • Power Dissipation (Max): 2.5W (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-SOIC
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Base Part Number: FDS88
  • detail: N-Channel 30V 18A (Ta) 2.5W (Ta) Surface Mount 8-SOIC
