FPF2283CUCX دیتاشیت

FPF2283CUCX

مشخصات دیتاشیت

نام دیتاشیت FPF2283CUCX
حجم فایل 87.35 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

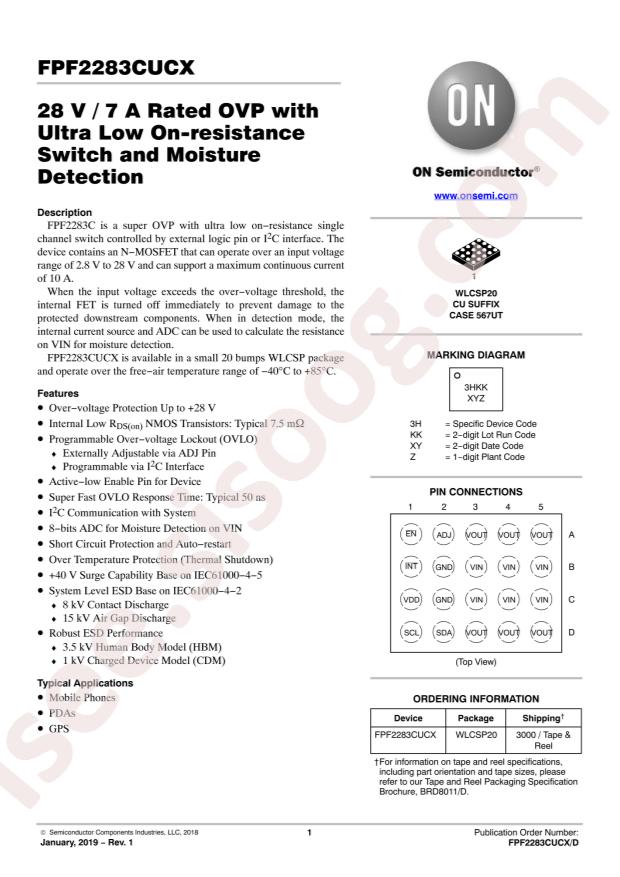

مشاهده دیتاشیت FPF2283CUCX

دانلود دیتاشیت

سایر مستندات

FPF2283CUCX 18 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: onsemi FPF2283CUCX
  • Input Voltage: 2.8V~23V
  • Output Current: 7A
  • Number of Outputs: 1
  • Resistor On-State: 7.5mΩ
  • Operating Temperature -: -
  • Package: WLCSP-20
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Type: General Purpose
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Interface: I²C, Logic
  • Voltage - Load: 2.8V ~ 23V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 7A
  • Rds On (Typ): 7.5mOhm
  • Input Type: Non-Inverting
  • Features: Auto Restart
  • Fault Protection: Over Temperature, Over Voltage, Short Circuit, UVLO
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 20-WLCSP (2.2x1.8)
  • Package / Case: 20-UFBGA, WLCSP
  • Base Part Number: FPF2
  • detail: Power Switch/Driver 1:1 N-Channel 7A 20-WLCSP (2.2x1.8)
