NTF5P03T3G دیتاشیت

NTF5P03T3G

مشخصات دیتاشیت

نام دیتاشیت NTF5P03T3G
حجم فایل 58.728 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

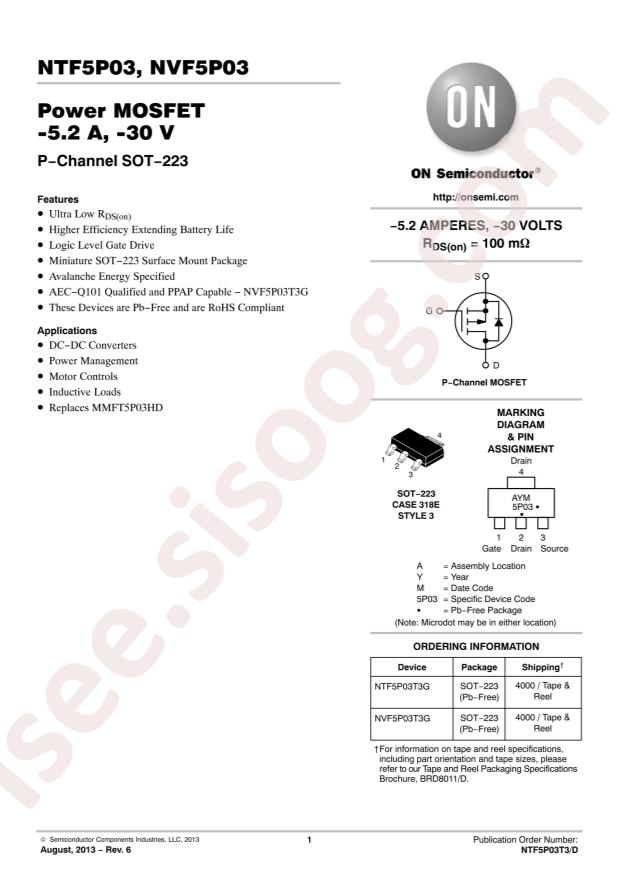

مشاهده دیتاشیت NTF5P03T3G

دانلود دیتاشیت

سایر مستندات

NTF5P03T3 7 pages

مشخصات فنی

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NTF5P03T3G
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 1.56W
  • Total Gate Charge (Qg@Vgs): 38nC@10V
  • Drain Source Voltage (Vdss): 30V
  • Input Capacitance (Ciss@Vds): 950pF@25V
  • Continuous Drain Current (Id): 3.7A
  • Gate Threshold Voltage (Vgs(th)@Id): 3V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 100mΩ@10V,5.2A
  • Package: SOT-223
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 3.7A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 100mOhm @ 5.2A, 10V
  • Vgs(th) (Max) @ Id: 3V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 38nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 950pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 1.56W (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-223
  • Package / Case: TO-261-4, TO-261AA
  • Base Part Number: NTF5P
  • detail: P-Channel 30V 3.7A (Ta) 1.56W (Ta) Surface Mount SOT-223
