FDMA1024NZ دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت FDMA1024NZ	دانلود دیتاشیت

RoHS: true
Type: 2 N-Channel
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: onsemi FDMA1024NZ
Operating Temperature: -55°C~+150°C@(Tj)
Power Dissipation (Pd): 700mW
Total Gate Charge (Qg@Vgs): 7.3nC@4.5V
Input Capacitance (Ciss@Vds): 500pF@10V
Continuous Drain Current (Id): 5A
Gate Threshold Voltage (Vgs(th)@Id): 1V@250uA
Reverse Transfer Capacitance (Crss@Vds): -
Drain Source On Resistance (RDS(on)@Vgs,Id): 54mΩ@5A,4.5V

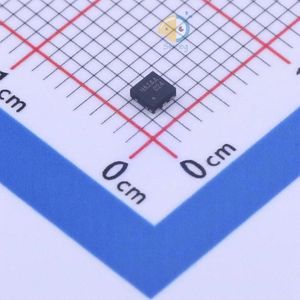

Package: MicroFET-6(2x2)
Manufacturer: onsemi
Series: PowerTrench®
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: 2 N-Channel (Dual)
FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 20V
Current - Continuous Drain (Id) @ 25°C: 5A
Rds On (Max) @ Id, Vgs: 54mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id: 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 7.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds: 500pF @ 10V
Power - Max: 700mW
Mounting Type: Surface Mount
Package / Case: 6-VDFN Exposed Pad
Supplier Device Package: 6-MicroFET (2x2)
Base Part Number: FDMA10
detail: Mosfet Array 2 N-Channel (Dual) 20V 5A 700mW Surface Mount 6-MicroFET (2x2)
