دیتاشیت 2SB1215S-TL-E
مشخصات دیتاشیت
| نام دیتاشیت | 2SB1215/2SD1815 |
|---|---|
| حجم فایل | 279.835 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت 2SB1215/2SD1815 |

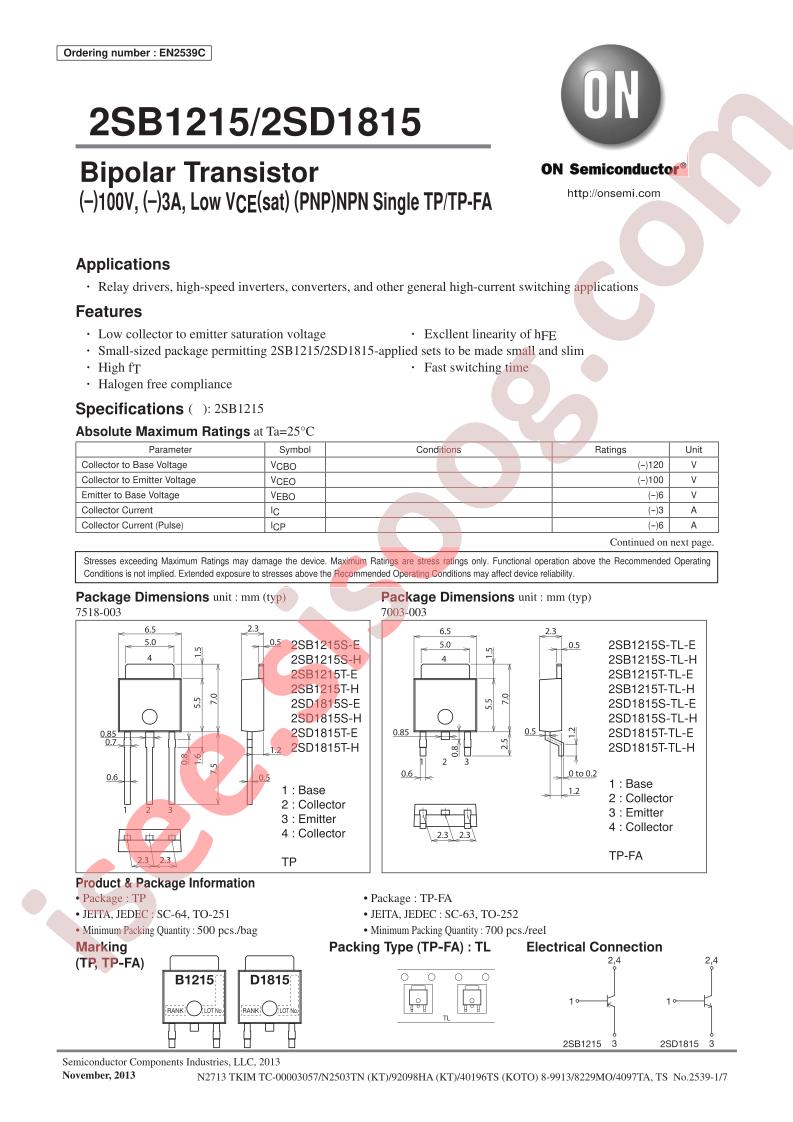

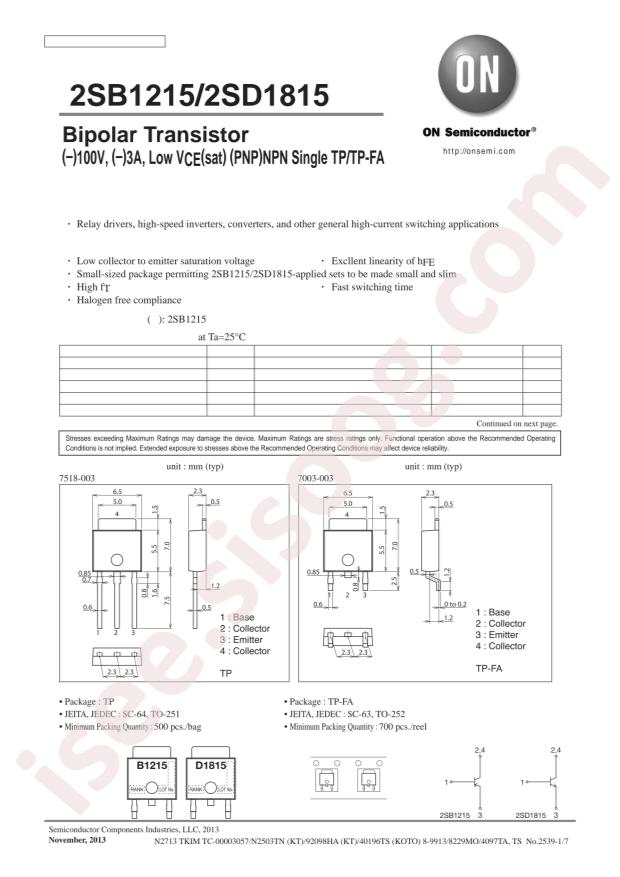

2SB1215/2SD1815 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: onsemi 2SB1215S-TL-E
- Transistor Type: PNP
- Operating Temperature: +150°C@(Tj)
- Collector Current (Ic): 3A
- Power Dissipation (Pd): 1W
- Transition Frequency (fT): 180MHz
- DC Current Gain (hFE@Ic,Vce): 140@500mA,5V
- Collector Cut-Off Current (Icbo): 1uA
- Collector-Emitter Breakdown Voltage (Vceo): 100V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 150mV@1.5A,150mA
- Package: TP-FA
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Current - Collector (Ic) (Max): 3A
- Voltage - Collector Emitter Breakdown (Max): 100V
- Vce Saturation (Max) @ Ib, Ic: 500mV @ 150mA, 1.5A
- Current - Collector Cutoff (Max): 1µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 140 @ 500mA, 5V
- Power - Max: 1W
- Frequency - Transition: 130MHz
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: 2-TP-FA
- Base Part Number: 2SB1215
- detail: Bipolar (BJT) Transistor PNP 100V 3A 130MHz 1W Surface Mount 2-TP-FA
