NCV3843BVDR2G دیتاشیت

مشخصات دیتاشیت

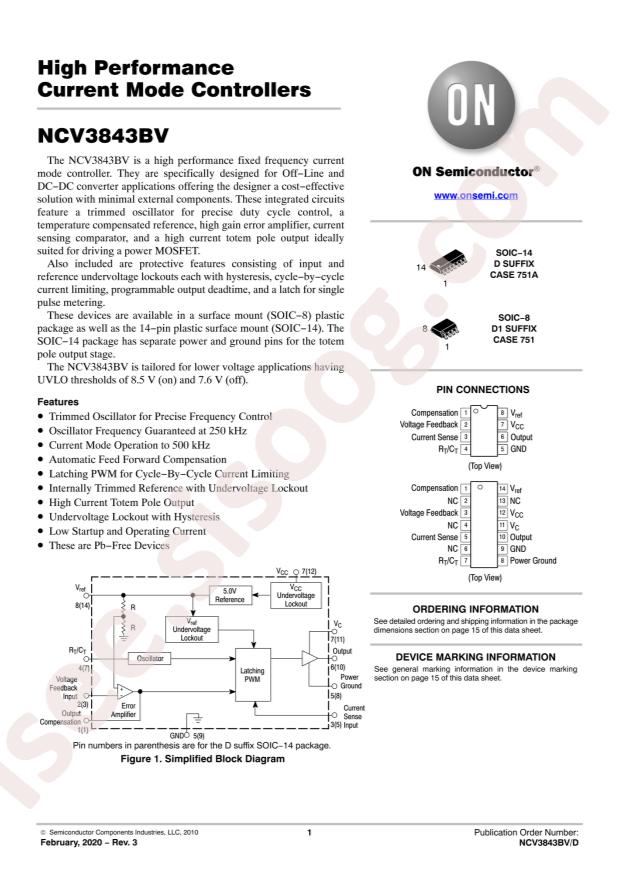

مشاهده دیتاشیت NCV3843BVDR2G	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Flyback
Datasheet: onsemi NCV3843BVDR2G
Duty Cycle: 96%
Supply Voltage: 7.6V~30V
Switching Frequency: 500kHz
Operating Temperature: -40°C~+125°C@(TJ)
Package: SOP-14
Manufacturer: onsemi
Series: Automotive, AEC-Q100
Packaging: Tape & Reel (TR)
Part Status: Obsolete
Output Type: Transistor Driver
Function: Step-Up/Step-Down
Output Configuration: Positive, Isolation Capable
Number of Outputs: 1
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 7.6V ~ 30V
Frequency - Switching: 500kHz
Duty Cycle (Max): 96%
Synchronous Rectifier: No
Clock Sync: No
Serial Interfaces: -
Control Features: Frequency Control
Mounting Type: Surface Mount
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 14-SOIC
Base Part Number: NCV3843
detail: Flyback Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 14-SOIC
