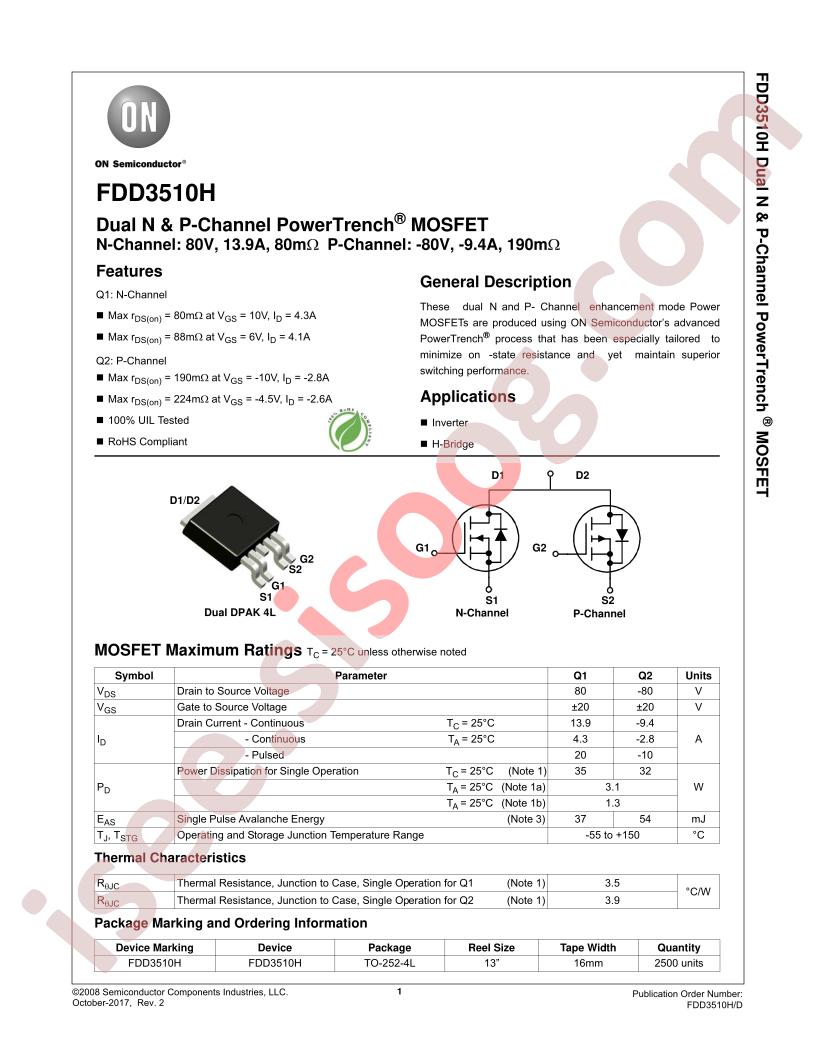

FDD3510H دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDD3510H
|
|
حجم فایل
|
498.444
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N and P-Channel, Common Drain
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
80V
-
Current - Continuous Drain (Id) @ 25°C:
4.3A, 2.8A
-
Rds On (Max) @ Id, Vgs:
80mOhm @ 4.3A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
18nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
800pF @ 40V
-
Power - Max:
1.3W
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-5, DPak (4 Leads + Tab), TO-252AD
-
Supplier Device Package:
TO-252-4L
-
Base Part Number:
FDD351
-
detail:
Mosfet Array N and P-Channel, Common Drain 80V 4.3A, 2.8A 1.3W Surface Mount TO-252-4L
