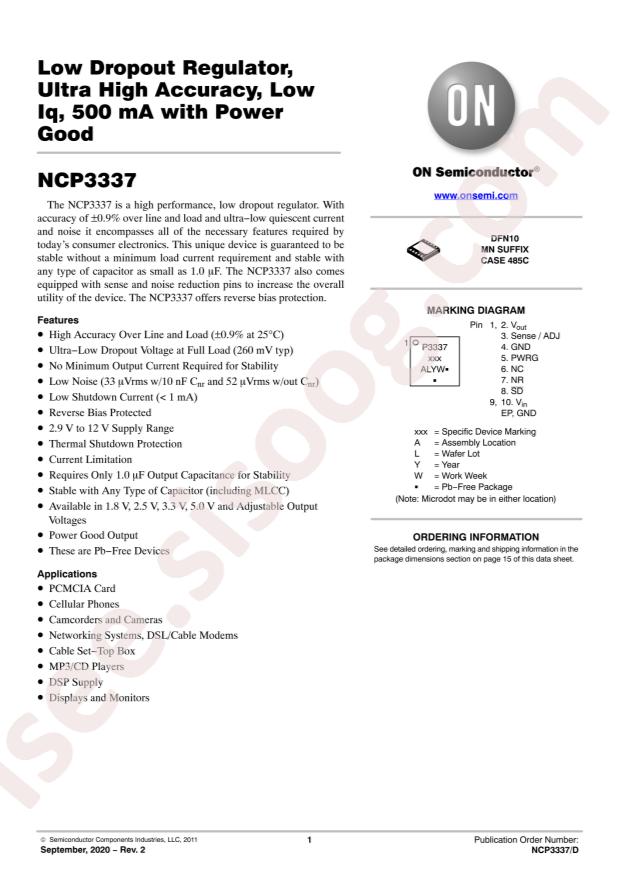

NCP3337MN180R2G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | NCP3337MN180R2G |
|---|---|
| حجم فایل | 72.424 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
دانلود دیتاشیت NCP3337MN180R2G |
دانلود دیتاشیت |
|---|
سایر مستندات
NCP3337 16 pages
NCP3337MNADJR2G 16 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: onsemi NCP3337MN180R2G
- Package: DFN-10(3x3)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 12V
- Voltage - Output (Min/Fixed): 1.8V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.62V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 220µA
- Current - Supply (Max): 14mA
- PSRR: -
- Control Features: Enable, Power Good
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 10-VFDFN Exposed Pad
- Supplier Device Package: 10-DFN (3x3)
- Base Part Number: NCP3337
- detail: Linear Voltage Regulator IC 1 Output 500mA 10-DFN (3x3)
