NCP1207ADR2G دیتاشیت

مشخصات دیتاشیت

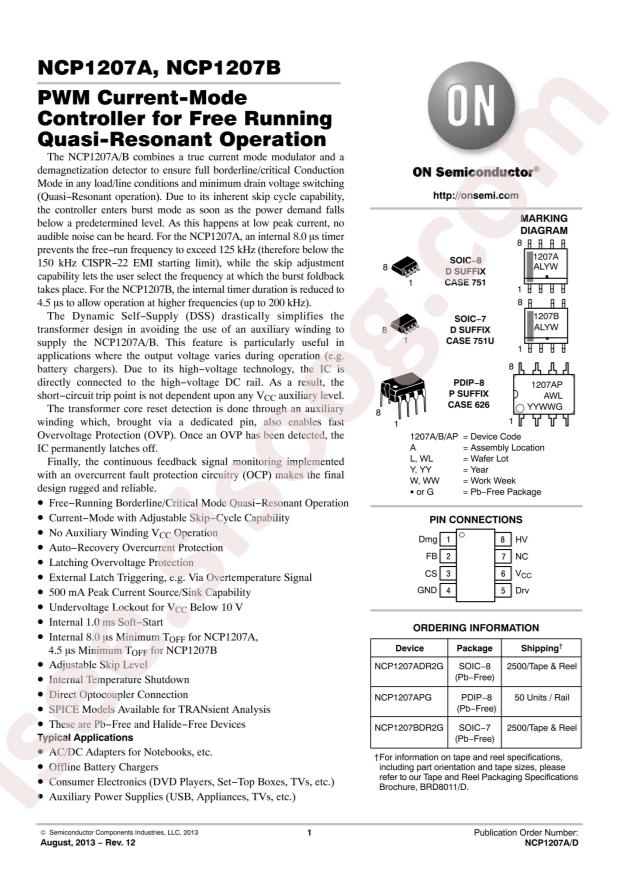

مشاهده دیتاشیت NCP1207ADR2G	دانلود دیتاشیت

NCP1207A 18 pages

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Flyback
Datasheet: onsemi NCP1207ADR2G
Supply Voltage: 10.6V~20V
Output Isolation: Isolation
Switching Frequency: 200kHz
Operating Temperature: -40°C~+125°C@(Tj)
Package: SOP-8
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Not For New Designs
Internal Switch(s): No
Voltage - Breakdown: -
Voltage - Supply (Vcc/Vdd): 10.6V ~ 20V
Duty Cycle: -
Frequency - Switching: Up to 200kHz
Fault Protection: Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features: -
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Mounting Type: Surface Mount
Base Part Number: NCP1207
detail: Converter Offline Flyback Topology Up to 200kHz 8-SOIC
