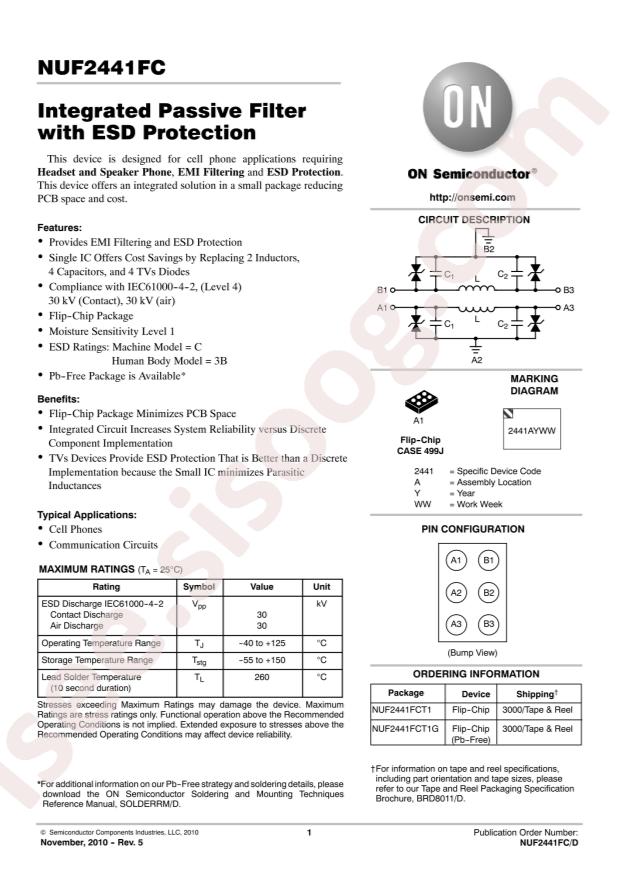

NUF2441FCT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NUF2441FCT1G
|
|
حجم فایل
|
89.54
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
3
|
مشخصات فنی
-
RoHS:
true
-
Category:
Bead/Filter/EMI Optimization/EMI Filters (LC, RC Networks)
-
Datasheet:
onsemi NUF2441FCT1G
-
Capacitance:
250pF
-
Filter Order:
3
-
ESD Protection:
Yes
-
Number of Channels:
2
-
OperatingTemperature:
-40°C~+125°C
-
Package:
WFBGA-6
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Type:
Low Pass
-
Technology:
LC (Pi)
-
Center / Cutoff Frequency:
-
-
Attenuation Value:
-
-
Resistance - Channel (Ohms):
0.28
-
Values:
L = 2.9nH, C = 250pF
-
Operating Temperature:
-40°C ~ 125°C
-
Applications:
Audio
-
Voltage - Rated:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
6-WFBGA, FCBGA
-
Size / Dimension:
0.067" L x 0.048" W (1.72mm x 1.22mm)
-
Height:
0.028" (0.70mm)
-
Base Part Number:
NUF2441
-
detail:
LC (Pi) EMI Filter 3rd Order Low Pass 2 Channel L = 2.9nH, C = 250pF 6-WFBGA, FCBGA
