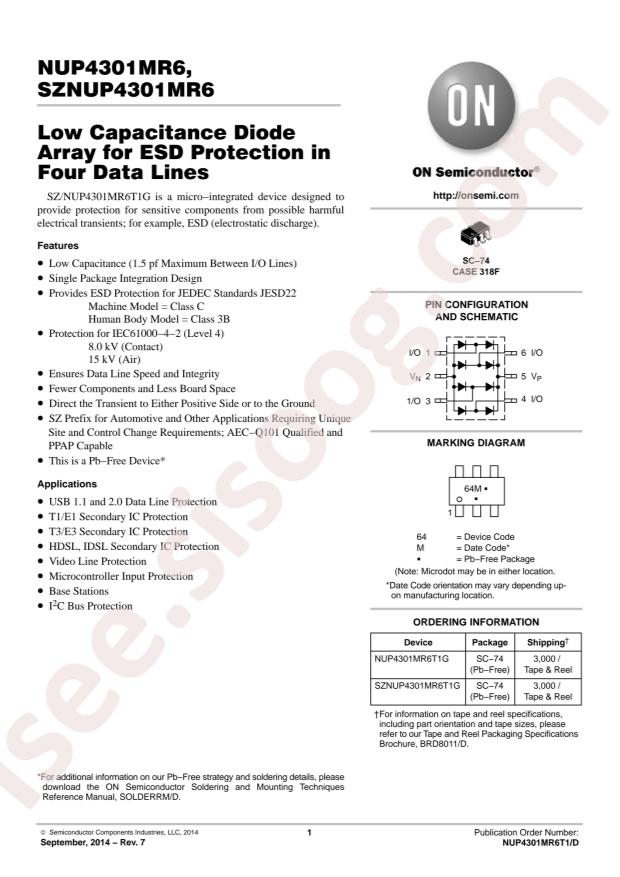

SZNUP4301MR6T1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SZNUP4301MR6T1G
|
|
حجم فایل
|
79.689
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/TVS
-
Datasheet:
onsemi SZNUP4301MR6T1G
-
Breakdown Voltage:
70V
-
Unidirectional Channels:
4
-
Maximum Clamping Voltage:
-
-
Reverse Stand-Off Voltage (Vrwm):
-
-
Peak Pulse Current (Ipp)@10/1000us:
-
-
Peak Pulse Power Dissipation (Ppp)@10/1000us:
-
-
Package:
SC-74-6
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Steering (Rail to Rail)
-
Voltage - Reverse Standoff (Typ):
-
-
Voltage - Breakdown (Min):
70V
-
Voltage - Clamping (Max) @ Ipp:
-
-
Current - Peak Pulse (10/1000µs):
-
-
Power - Peak Pulse:
-
-
Power Line Protection:
No
-
Applications:
Automotive
-
Capacitance @ Frequency:
1.6pF @ 1MHz
-
Operating Temperature:
-40°C ~ 85°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-74, SOT-457
-
Supplier Device Package:
SC-74
-
Base Part Number:
NUP4301
-
detail:
Clamp Ipp Tvs Diode Surface Mount SC-74
