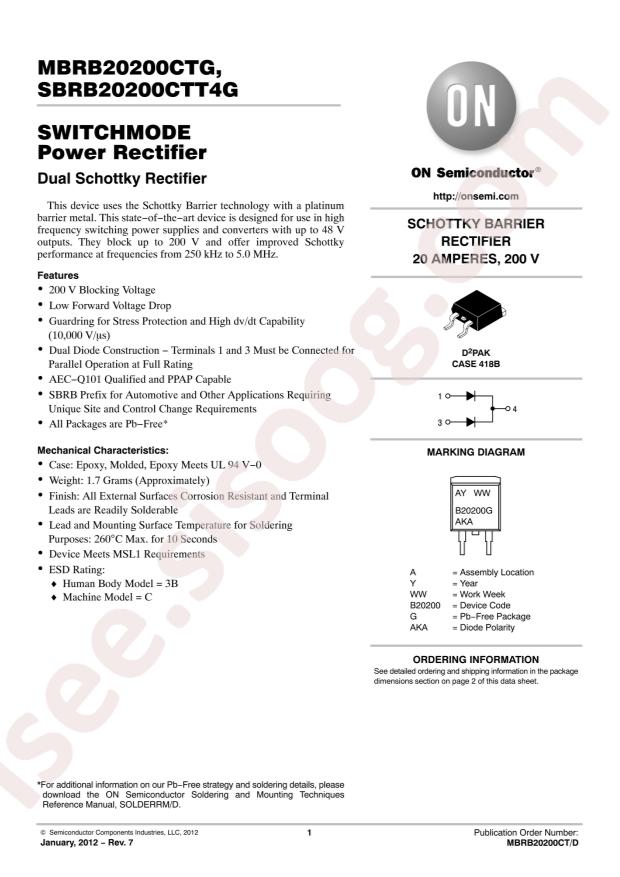

MBRB20200CTT4G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MBRB20200CTT4G
|
|
حجم فایل
|
73.812
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
onsemi MBRB20200CTT4G
-
Diode Configuration:
Dual Common Cathode
-
Reverse Voltage (Vr):
200V
-
Forward Voltage (Vf@If):
1V@20A
-
Reverse Leakage Current (Ir):
1mA@200V
-
Average Rectified Current (Io):
10A
-
Package:
D2PAK-3
-
Manufacturer:
onsemi
-
Series:
SWITCHMODE™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
200V
-
Current - Average Rectified (Io) (per Diode):
10A
-
Voltage - Forward (Vf) (Max) @ If:
900mV @ 10A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
1mA @ 200V
-
Operating Temperature - Junction:
-65°C ~ 150°C
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Supplier Device Package:
D2PAK-3
-
Base Part Number:
MBRB202
-
detail:
Diode Array 1 Pair Common Cathode Schottky 200V 10A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
