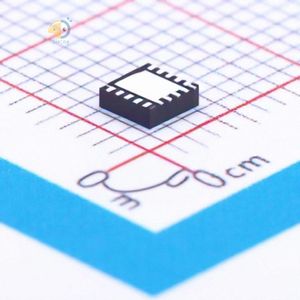

NCV8535MN330R2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCV8535MN330R2G
|
|
حجم فایل
|
79.719
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
22
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-

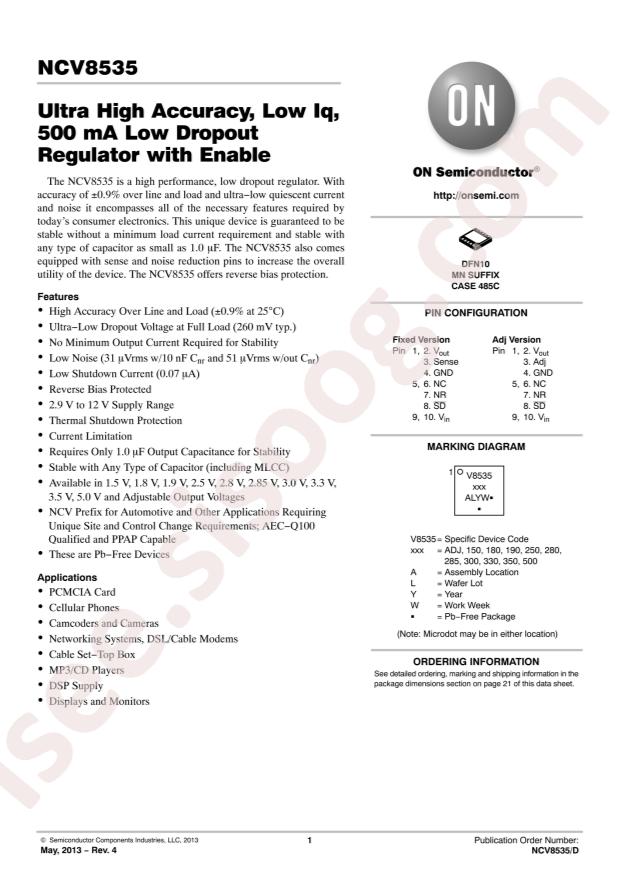

Datasheet:
onsemi NCV8535MN330R2G
-
Output Type:
Fixed
-
Output Current:
500mA
-
Output Voltage:
3.3V
-
Dropout Voltage:
340mV@(500mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
12V
-
Operating Temperature:
-40°C~+85°C
-
Quiescent Current (Ground Current):
190uA
-
Power Supply Rejection Ratio (PSRR):
-
-
Package:
DFN-10(3x3)
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q100
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
12V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.34V @ 500mA
-
Current - Output:
500mA
-
Current - Quiescent (Iq):
190µA
-
Current - Supply (Max):
14mA
-
PSRR:
-
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
10-VFDFN Exposed Pad
-
Supplier Device Package:
10-DFN (3x3)
-
Base Part Number:
NCV8535
-
detail:
Linear Voltage Regulator IC 1 Output 500mA 10-DFN (3x3)
