دیتاشیت NCP1237AD65R2G

مشخصات دیتاشیت

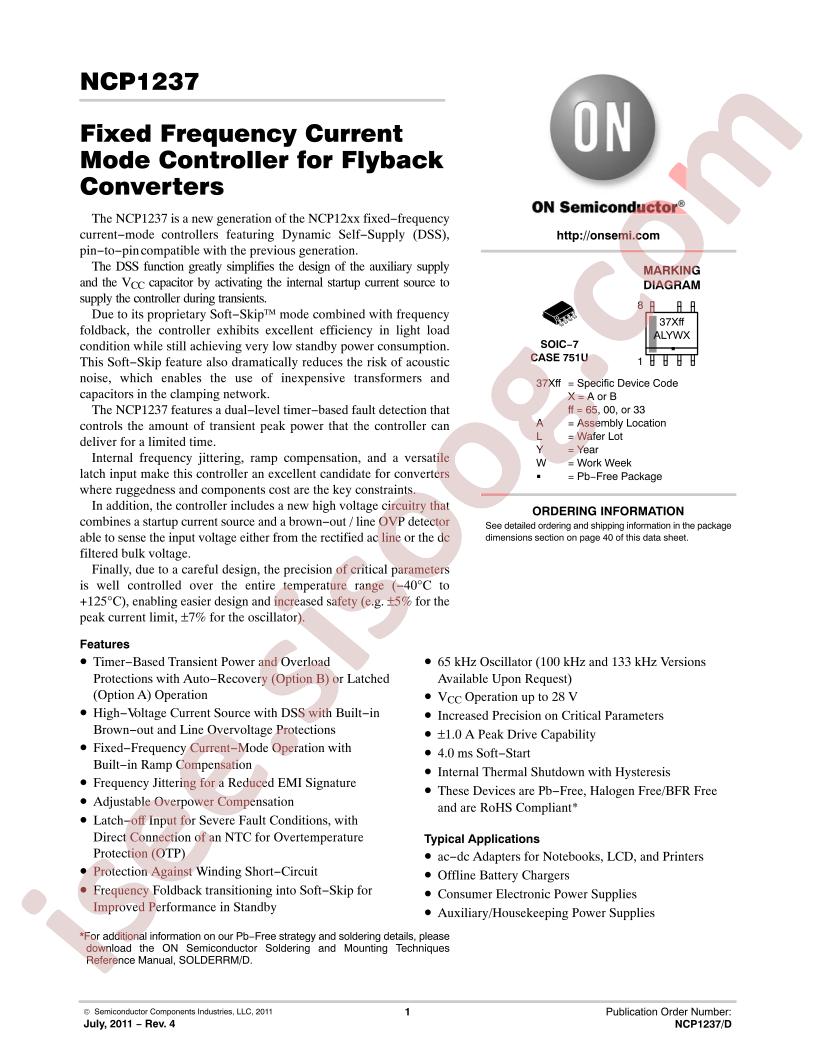

دانلود دیتاشیت NCP1237	NCP1237 Datasheet

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Flyback
Datasheet: onsemi NCP1237AD65R2G
Duty Cycle: 80%
Supply Voltage: 9.5V~28V
Output Isolation: Isolation
Switching Frequency: 65kHz
Operating Temperature: -40°C~+150°C@(Tj)
Package: SOP-7
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Internal Switch(s): No
Voltage - Breakdown: -
Voltage - Start Up: 12V
Voltage - Supply (Vcc/Vdd): 9.5V ~ 28V
Frequency - Switching: 65kHz
Fault Protection: Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features: -
Package / Case: 8-SOIC (0.154", 3.90mm Width), 7 Leads
Supplier Device Package: 7-SOIC
Mounting Type: Surface Mount
Base Part Number: NCP1237
detail: Converter Offline Flyback Topology 65kHz 7-SOIC
