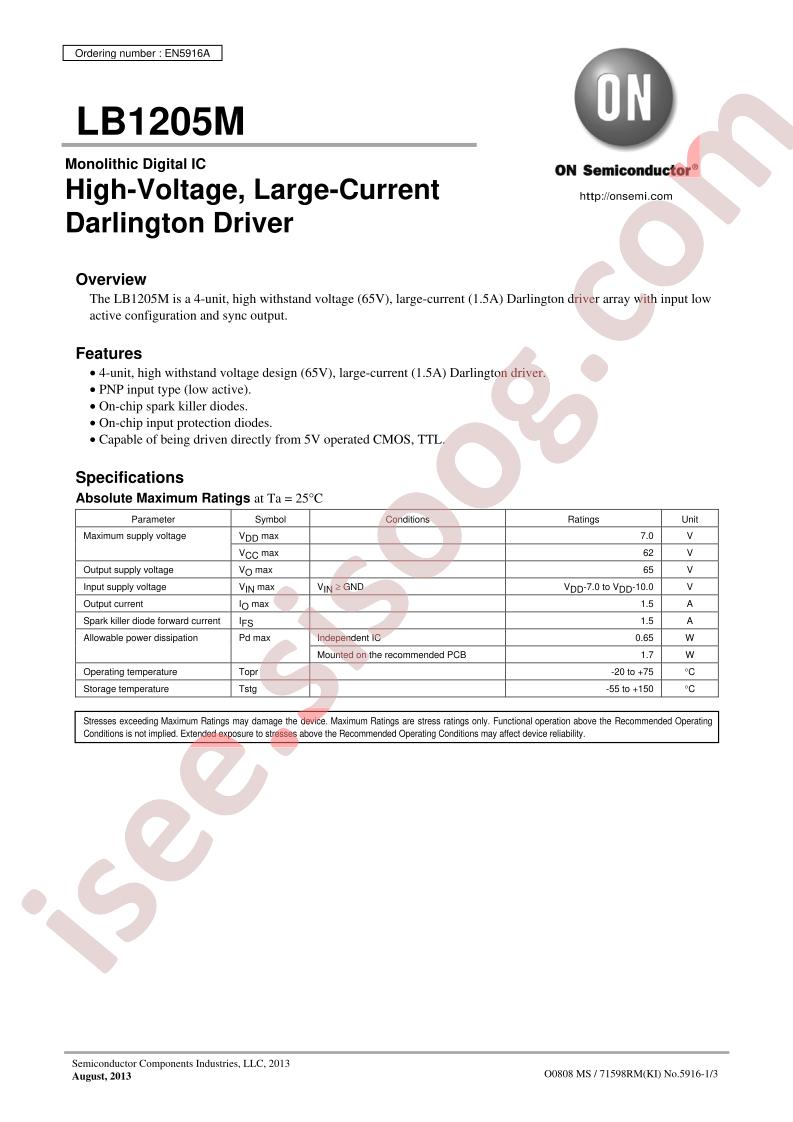

LB1205M-TLM-E Datasheet
Datasheet specifications
| Datasheet's name | LB1205M |
|---|---|
| File size | 68.439 KB |
| File type | |
| Number of pages | 3 |
Download Datasheet LB1205M |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: ON Semiconductor
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Switch Type: General Purpose
- Number of Outputs: 4
- Ratio - Input:Output: 1:1
- Output Configuration: Low Side
- Output Type: Darlington
- Interface: -
- Voltage - Load: 3.5V ~ 7V
- Voltage - Supply (Vcc/Vdd): -
- Current - Output (Max): 1.5A
- Rds On (Typ): -
- Input Type: Non-Inverting
- Features: -
- Fault Protection: -
- Operating Temperature: -20°C ~ 75°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 16-MFP
- Package / Case: 16-LSOP (0.213", 5.40mm Width) + 4 Heat Tabs
- Base Part Number: LB1205
- detail: Power Switch/Driver 1:1 Darlington 1.5A 16-MFP
