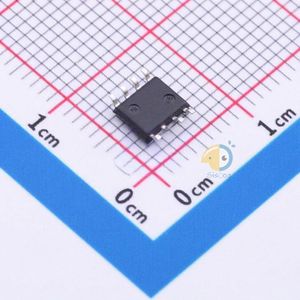

NCV3066DR2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCV3066DR2G
|
|
حجم فایل
|
93.846
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Type:
DC-DCVoltage Stabilizer
-
Dimming:
Analog;PWM
-
Category:
Nixie Tube Driver/LED Driver/LED Drivers
-
Channels:
1
-
Topology:
Step-down,boost converter
-

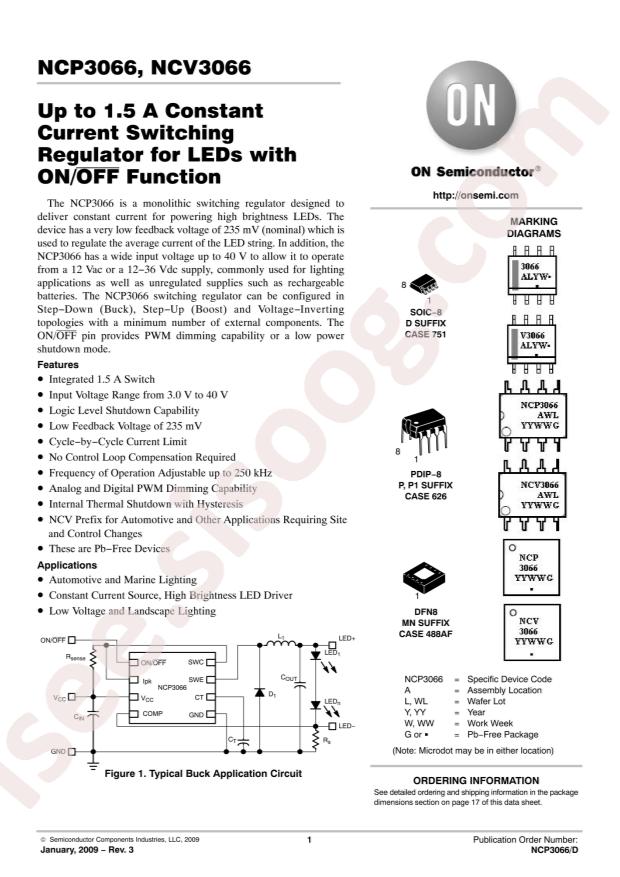

Datasheet:
onsemi NCV3066DR2G
-
Input Voltage:
3V~40V
-
Output Current:
1.5A
-
Switch Frequency:
150kHz
-
Operating temperature:
-40°C~+125°C
-
Package:
SOP-8
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q100
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Internal Switch(s):
Yes
-
Number of Outputs:
1
-
Voltage - Supply (Min):
3V
-
Voltage - Supply (Max):
40V
-
Voltage - Output:
-
-
Current - Output / Channel:
1.5A (Switch)
-
Frequency:
150kHz
-
Applications:
Automotive, Lighting
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
NCV3066
-
detail:
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 1.5A (Switch) 8-SOIC
