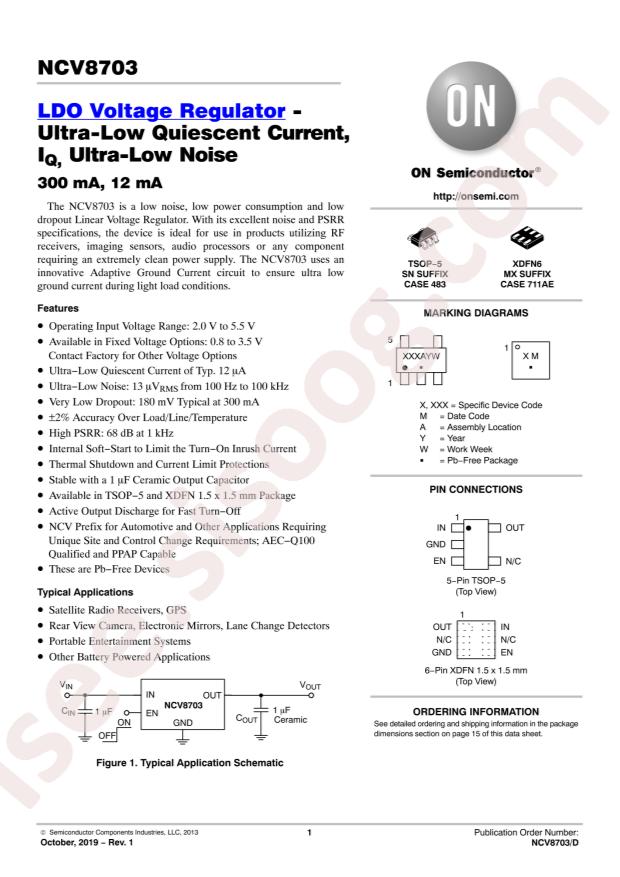

NCV8703MX18TCG دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | NCV8703MX18TCG |
|---|---|
| حجم فایل | 85.257 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت NCV8703MX18TCG |
دانلود دیتاشیت |
|---|
سایر مستندات
NCV8703 17 pages
NCV8703MX18TCG 18 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: onsemi NCV8703MX18TCG
- Output Current: 300mA
- Output Voltage: 1.8V
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current): 20uA
- Package: DFN-6(1.5x1.5)
- Manufacturer: onsemi
- Series: Automotive, AEC-Q100
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.8V
- Voltage - Output (Max): -
- Voltage Dropout (Max): -
- Current - Output: 300mA
- Current - Quiescent (Iq): 20µA
- PSRR: -
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO)
- Mounting Type: Surface Mount
- Package / Case: 6-XFDFN
- Supplier Device Package: 6-XDFN (1.5x1.5)
- Base Part Number: NCV8703
- detail: Linear Voltage Regulator IC 1 Output 300mA 6-XDFN (1.5x1.5)
