FDPC8016S دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت FDPC8016S	دانلود دیتاشیت

RoHS: true
Type: -
Category: Triode/MOS Tube/Transistor/MOSFETs

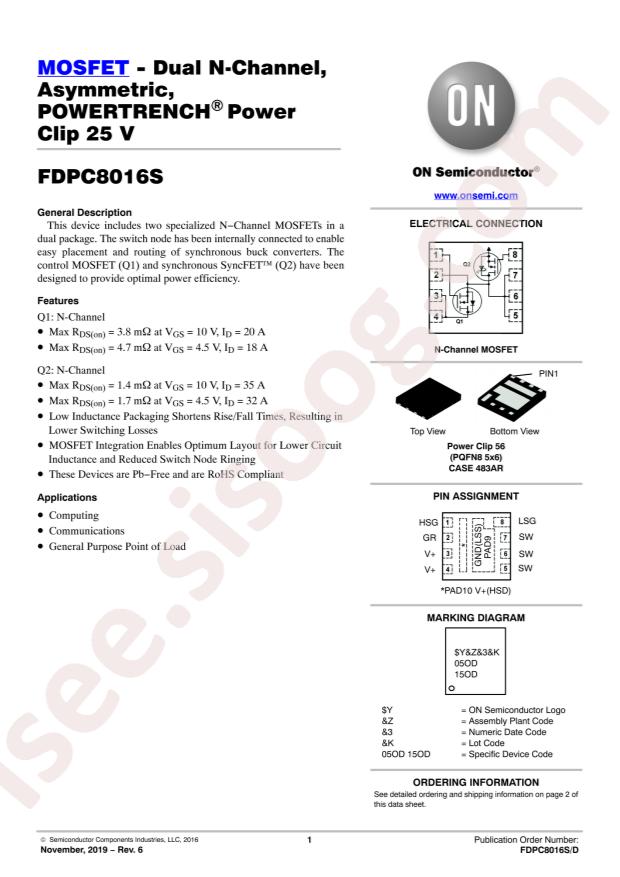

Datasheet: onsemi FDPC8016S
Power Dissipation (Pd): -
Total Gate Charge (Qg@Vgs): -
Drain Source Voltage (Vdss): -
Input Capacitance (Ciss@Vds): -
Continuous Drain Current (Id): -
Gate Threshold Voltage (Vgs(th)@Id): -
Reverse Transfer Capacitance (Crss@Vds): -
Drain Source On Resistance (RDS(on)@Vgs,Id): -

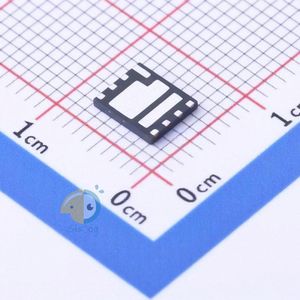

Package: PQFN-8-EP(5x6)
Manufacturer: onsemi
Series: PowerTrench®
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: 2 N-Channel (Dual) Asymmetrical
FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 25V
Current - Continuous Drain (Id) @ 25°C: 20A, 35A
Rds On (Max) @ Id, Vgs: 3.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 35nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 2375pF @ 13V
Power - Max: 2.1W, 2.3W
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerWDFN
Supplier Device Package: Power Clip 56
Base Part Number: FDPC8
detail: Mosfet Array 2 N-Channel (Dual) Asymmetrical 25V 20A, 35A 2.1W, 2.3W Surface Mount Power Clip 56
