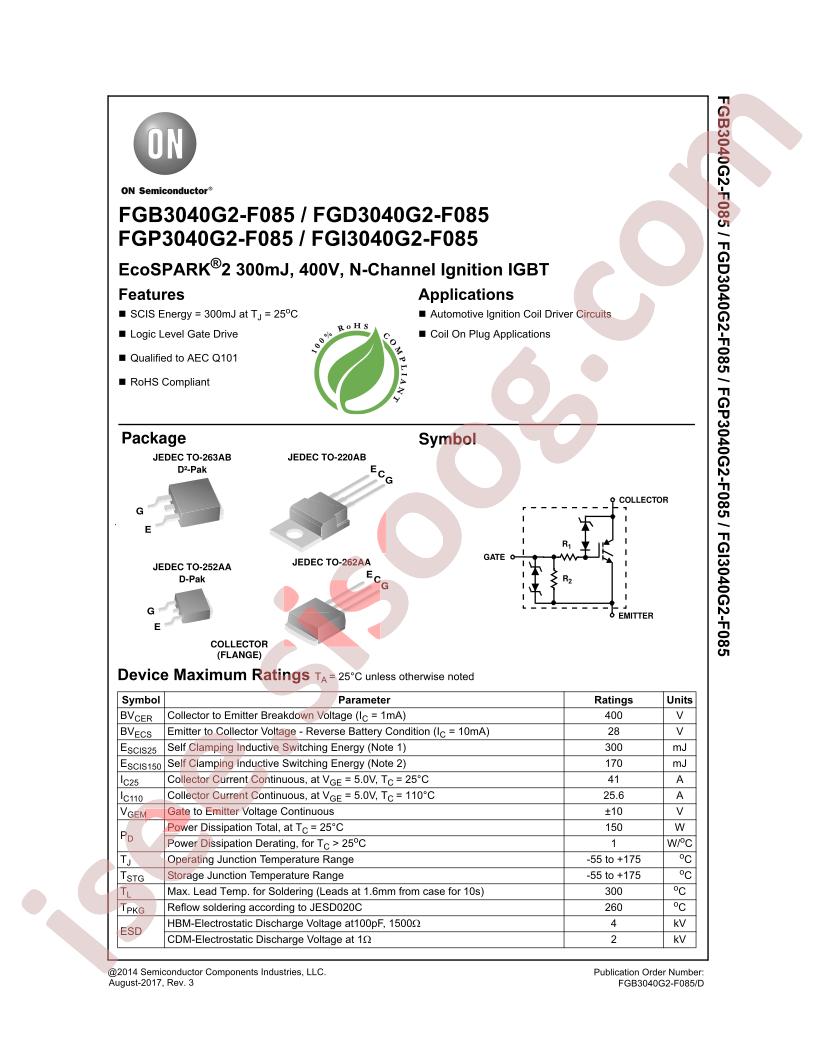

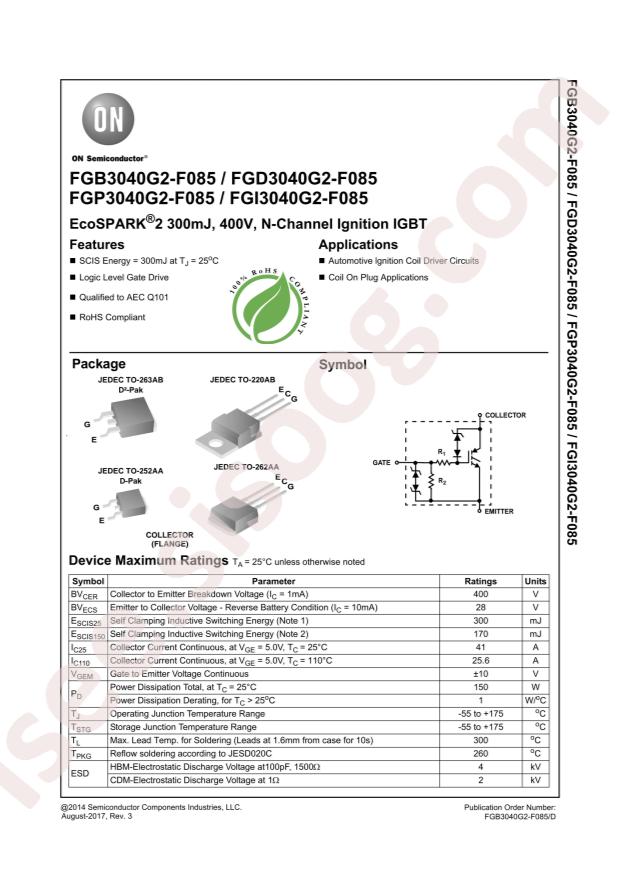

دیتاشیت FGD3040G2-F085
مشخصات دیتاشیت
| نام دیتاشیت |
FGD3040G2_F085
|
| حجم فایل |
1633.649
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
onsemi FGD3040G2-F085
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Collector Current (Ic):
41A
-
Power Dissipation (Pd):
150W
-
Input Capacitance (Cies@Vce):
-
-
Turn?on Switching Loss (Eon):
-
-
Collector-Emitter Breakdown Voltage (Vces):
400V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
-
Package:
TO-252AA
-
Manufacturer:
onsemi
-
Series:
EcoSPARK®
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
400V
-
Current - Collector (Ic) (Max):
41A
-
Vce(on) (Max) @ Vge, Ic:
1.25V @ 4V, 6A
-
Power - Max:
150W
-
Switching Energy:
-
-
Input Type:
Logic
-
Gate Charge:
21nC
-
Td (on/off) @ 25°C:
-/4.8µs
-
Test Condition:
300V, 6.5A, 1kOhm, 5V
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Supplier Device Package:
TO-252AA
-
Base Part Number:
FGD3
-
detail:
IGBT 400V 41A 150W Surface Mount TO-252AA
