دیتاشیت NCP1377DR2G

NCP1377(B)

مشخصات دیتاشیت

نام دیتاشیت NCP1377(B)
حجم فایل 194.632 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

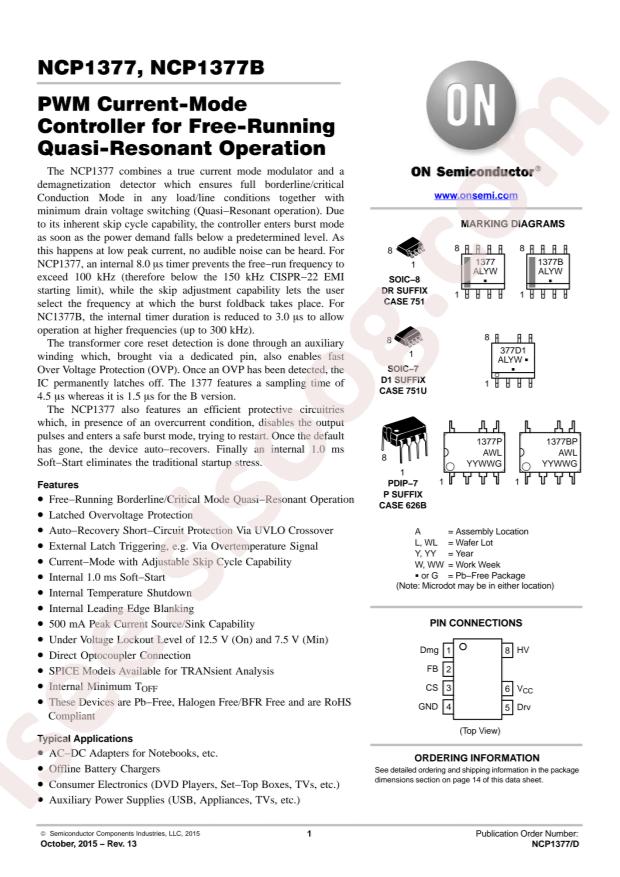

دانلود دیتاشیت NCP1377(B)

NCP1377(B) Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Flyback
  • Datasheet: onsemi NCP1377DR2G
  • Supply Voltage: 7.5V~18V
  • Output Isolation: Isolation
  • Switching Frequency: 100kHz
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Internal Switch(s): No
  • Voltage - Breakdown: -
  • Voltage - Start Up: 12.5V
  • Voltage - Supply (Vcc/Vdd): 7.5V ~ 18V
  • Duty Cycle: -
  • Frequency - Switching: Up to 100kHz
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage
  • Control Features: -
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: NCP1377
  • detail: Converter Offline Flyback Topology Up to 100kHz 8-SOIC
