NCP3136MNTXG دیتاشیت

مشخصات دیتاشیت

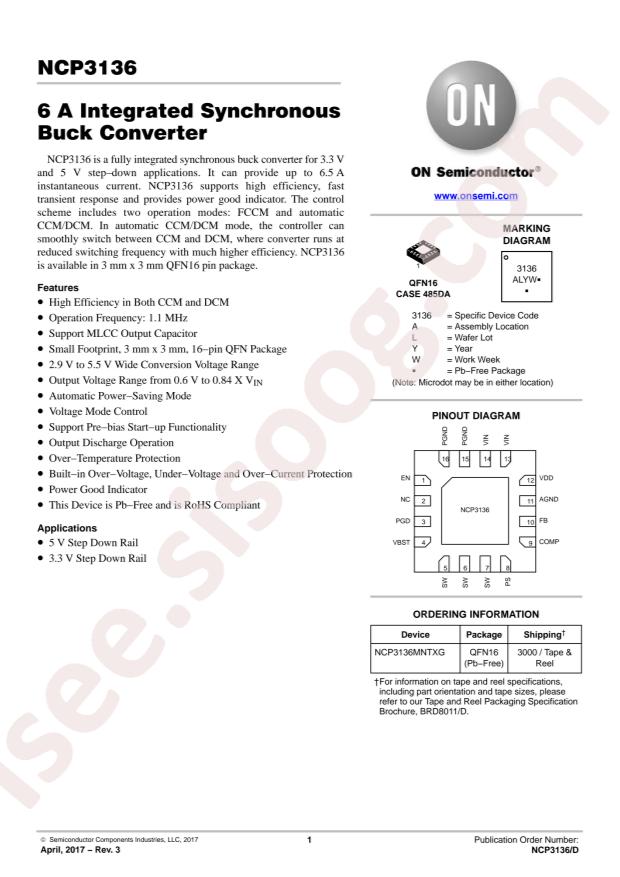

مشاهده دیتاشیت NCP3136MNTXG	دانلود دیتاشیت

NCP3136 10 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: onsemi NCP3136MNTXG
Output Type: Adjustable
Input Voltage: 2.9V~5.5V
Output Voltage: 0.6V~6.5V
Number of Outputs: 1
Switching Frequency: 1.1MHz
Output Current (Max): 6A
Operating Temperature: -40°C~+125°C@(TA)
Synchronous Rectification: NO
Package: QFN-16-EP(3x3)
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 2.9V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 0.6V
Voltage - Output (Max): 6.5V
Current - Output: 6A
Frequency - Switching: 1.1MHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 16-VFQFN Exposed Pad
Supplier Device Package: 16-QFN (3x3)
Base Part Number: NCP3136
detail: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 16-VFQFN Exposed Pad
