NCP1422MNR2G دیتاشیت

NCP1422MNR2G

مشخصات دیتاشیت

نام دیتاشیت NCP1422MNR2G
حجم فایل 108.523 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

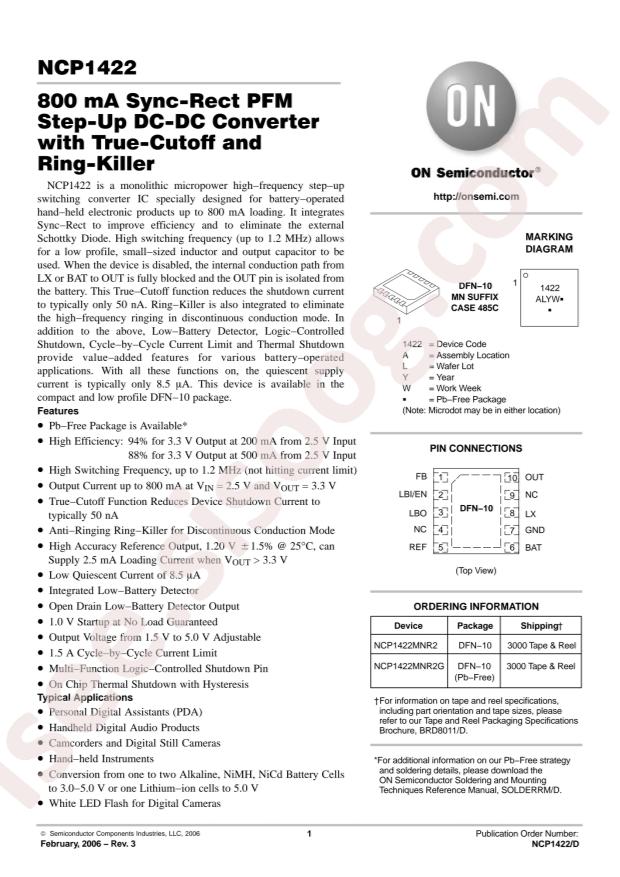

دانلود دیتاشیت NCP1422MNR2G

دانلود دیتاشیت

سایر مستندات

NCP1422 13 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Converters
  • Function: boost converterType
  • Topology: Boost
  • Datasheet: onsemi NCP1422MNR2G
  • Output Type: Adjustable
  • Input Voltage: 1V~5V
  • Output Voltage: 1.5V~5V
  • Number of Outputs: 1
  • Switching Frequency: 1.2MHz
  • Output Current (Max): 1.5A
  • Operating Temperature: -40°C~+85°C@(TA)
  • Synchronous Rectification: Yes
  • Package: DFN-10(3x3)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Output Configuration: Positive
  • Voltage - Input (Min): 1V
  • Voltage - Input (Max): 5V
  • Voltage - Output (Min/Fixed): 1.5V
  • Voltage - Output (Max): 5V
  • Current - Output: 1.5A (Switch)
  • Frequency - Switching: 1.2MHz
  • Synchronous Rectifier: Yes
  • Mounting Type: Surface Mount
  • Package / Case: 10-VFDFN Exposed Pad
  • Supplier Device Package: 10-DFN (3x3)
  • Base Part Number: NCP1422
  • detail: Boost Switching Regulator IC Positive Adjustable 1.5V 1 Output 1.5A (Switch) 10-VFDFN Exposed Pad
