LV5980MC-AH دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LV5980MC-AH	دانلود دیتاشیت

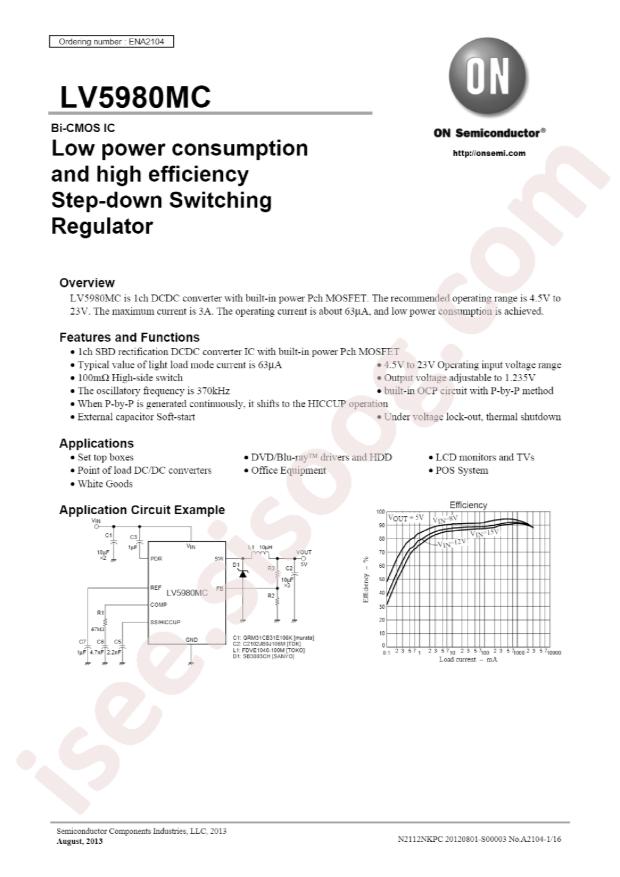

LV5980MC 16 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: onsemi LV5980MC-AH
Output Type: Adjustable
Input Voltage: 4.5V~23V
Output Voltage: 1.235V~21.62V
Number of Outputs: 1
Switching Frequency: 370kHz
Output Current (Max): 3A
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: NO
Package: SOP-8
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 23V
Voltage - Output (Min/Fixed): 1.235V
Voltage - Output (Max): 21.62V
Current - Output: 3A
Frequency - Switching: 370kHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Base Part Number: LV598
detail: Buck Switching Regulator IC Positive Adjustable 1.235V 1 Output 3A 8-SOIC (0.154", 3.90mm Width)
