NCP12700ADNR2G دیتاشیت

مشخصات دیتاشیت

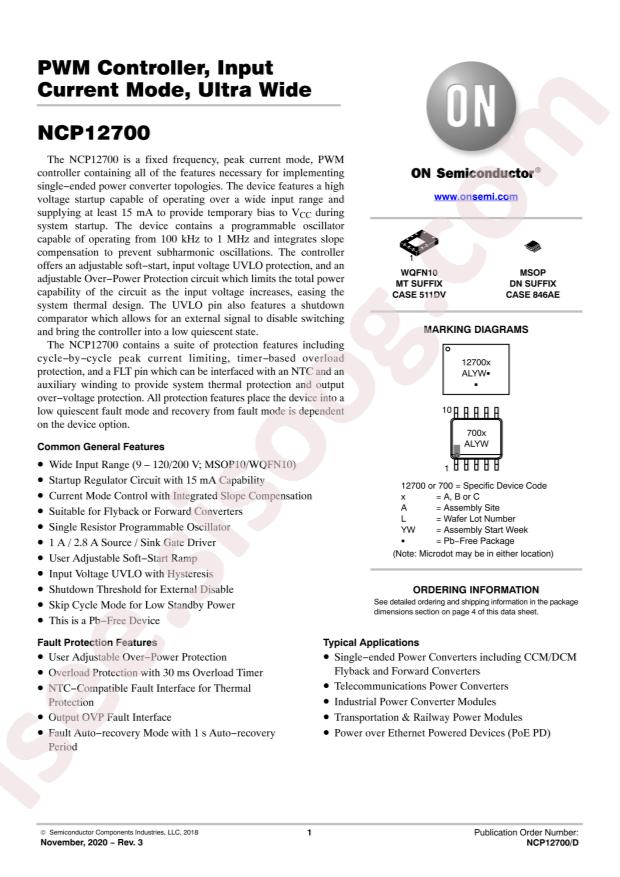

مشاهده دیتاشیت NCP12700ADNR2G	دانلود دیتاشیت

NCP12700 20 pages

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Flyback
Datasheet: onsemi NCP12700ADNR2G
Duty Cycle: 80%
Supply Voltage: 9V~20V
Output Isolation: Isolation
Switching Frequency: 100kHz~1MHz
Operating Temperature: -40°C~+125°C@(Tj)
Package: MSOP-10
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Discontinued at Digi-Key
Internal Switch(s): No
Voltage - Breakdown: -
Voltage - Supply (Vcc/Vdd): 9V ~ 20V
Frequency - Switching: 100kHz ~ 1MHz
Fault Protection: Current Limiting, Open Loop, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit
Control Features: EN, Frequency Control, Soft Start, Sync
Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package: 10-MSOP
Mounting Type: Surface Mount
Base Part Number: NCP12700
detail: Converter Offline Flyback Topology 100kHz ~ 1MHz 10-MSOP
