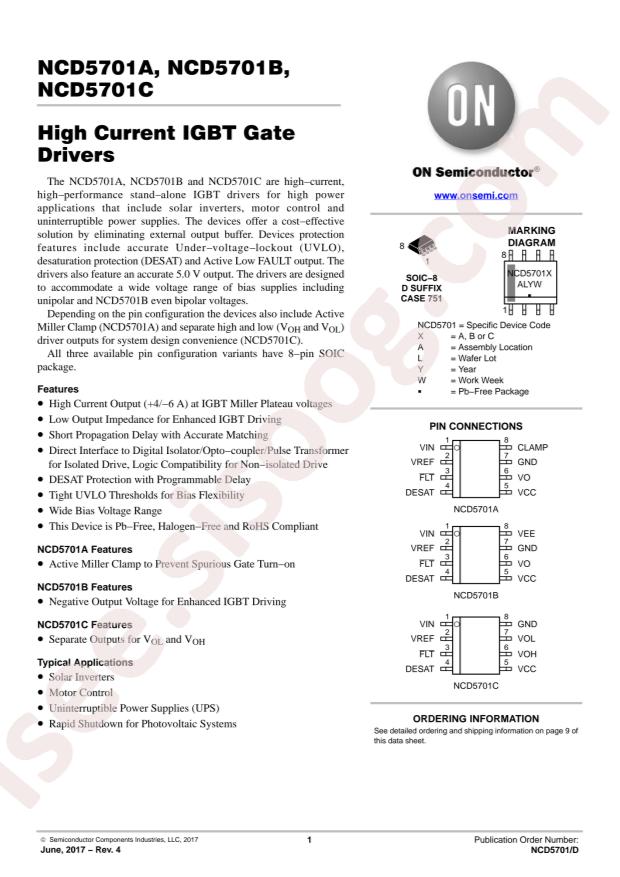

NCD5701CDR2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCD5701CDR2G
|
|
حجم فایل
|
85.275
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
onsemi NCD5701CDR2G
-
Fall Time:
19ns
-
Load Type:
IGBT
-
Rise Time:
18ns
-
Supply Voltage:
20V
-
Number of Drivers:
1
-
Driven Configuration:
High Side;Low Side
-
Operating Temperature:
-40°C~+150°C@(Tj)
-
Peak Output Current(sink):
6.8A
-
Peak Output Current(source):
7.8A
-
Package:
SOP-8
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Channel Type:
Synchronous
-
Gate Type:
IGBT
-
Voltage - Supply:
20V
-
Logic Voltage - VIL, VIH:
-
-
Current - Peak Output (Source, Sink):
7.8A, 6.8A
-
Input Type:
-
-
Rise / Fall Time (Typ):
18ns, 19ns
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
NCD5701
-
detail:
High-Side or Low-Side Gate Driver IC 8-SOIC
