FAN8811TMPX دیتاشیت

FAN8811TMPX

مشخصات دیتاشیت

نام دیتاشیت FAN8811TMPX
حجم فایل 89.655 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

مشاهده دیتاشیت FAN8811TMPX

دانلود دیتاشیت

سایر مستندات

FAN8811 14 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi FAN8811TMPX
  • Fall Time: 4ns
  • Load Type: MOSFET
  • Rise Time: 6ns
  • Supply Voltage: 8V~16V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 6A
  • Peak Output Current(source): 3A
  • Package: DFN-10(4x4)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 8V ~ 16V
  • Logic Voltage - VIL, VIH: 1.3V, 2.5V
  • Current - Peak Output (Source, Sink): 3A, 6A
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 118V
  • Rise / Fall Time (Typ): 6ns, 4ns
  • Mounting Type: Surface Mount

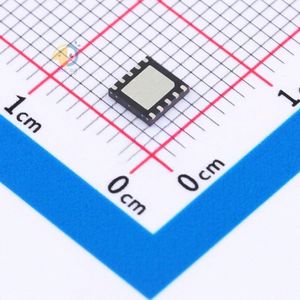

  • Package / Case: 10-WDFN Exposed Pad
  • Supplier Device Package: 10-MLP (4x4)
  • Base Part Number: FAN8811
  • detail: Half-Bridge Gate Driver IC Non-Inverting 10-MLP (4x4)
