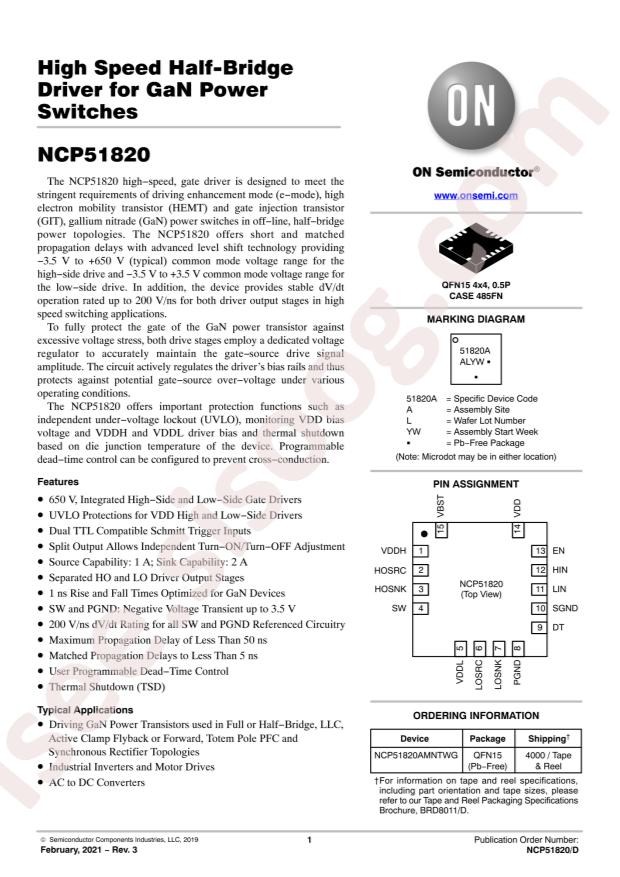

دیتاشیت NCP51820AMNTWG

NCP51820

مشخصات دیتاشیت

نام دیتاشیت NCP51820
حجم فایل 878.342 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت NCP51820

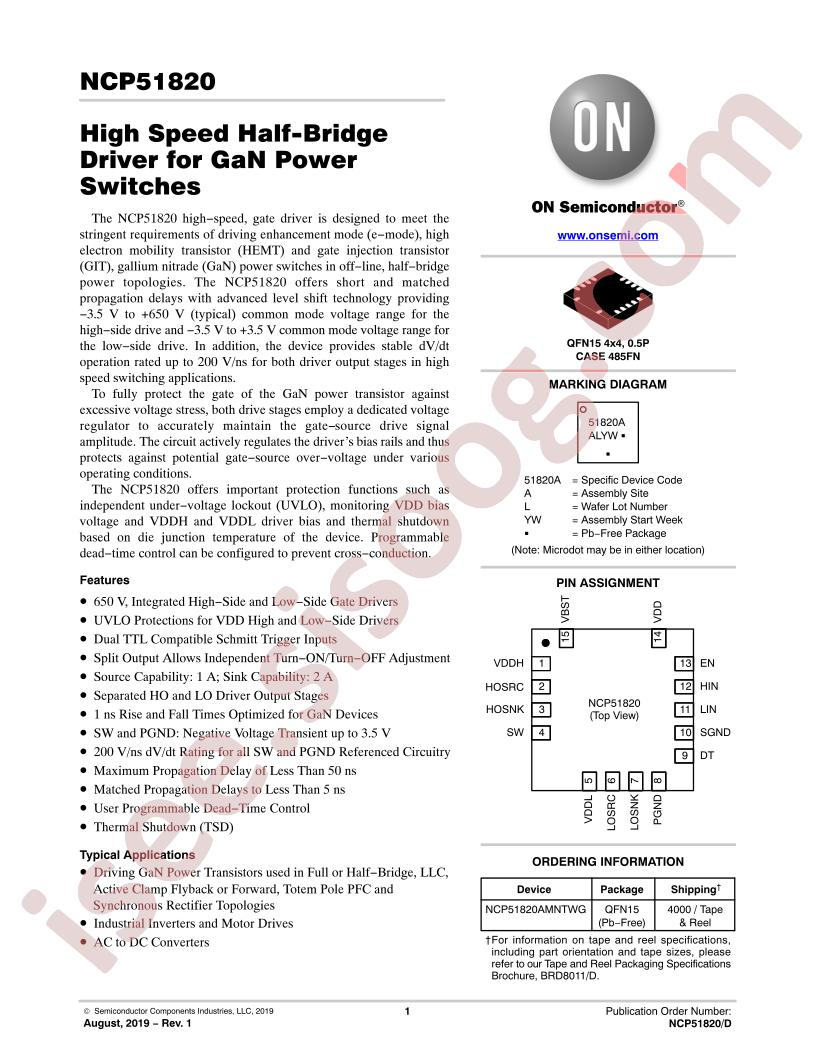

NCP51820 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi NCP51820AMNTWG
  • Fall Time: 1.5ns
  • Load Type: MOSFET
  • Rise Time: 2ns
  • Supply Voltage: 9V~17V
  • Driven Configuration: Half Bridge
  • Operating Temperature: 150°C@(Tj)
  • Peak Output Current(sink): 2A
  • Peak Output Current(source): 1A
  • Package: QFN-15(4.4x4)
  • Manufacturer: onsemi
  • Series: -
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: N-Channel, P-Channel MOSFET
  • Voltage - Supply: 9V ~ 17V
  • Logic Voltage - VIL, VIH: -
  • Current - Peak Output (Source, Sink): 1A, 2A
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 670V
  • Rise / Fall Time (Typ): 2ns, 1.5ns
  • Mounting Type: Surface Mount
  • Package / Case: 15-VFQFN
  • Supplier Device Package: 15-QFN (4x4)
  • Base Part Number: NCP518
  • detail: Half-Bridge Gate Driver IC Non-Inverting 15-QFN (4x4)
